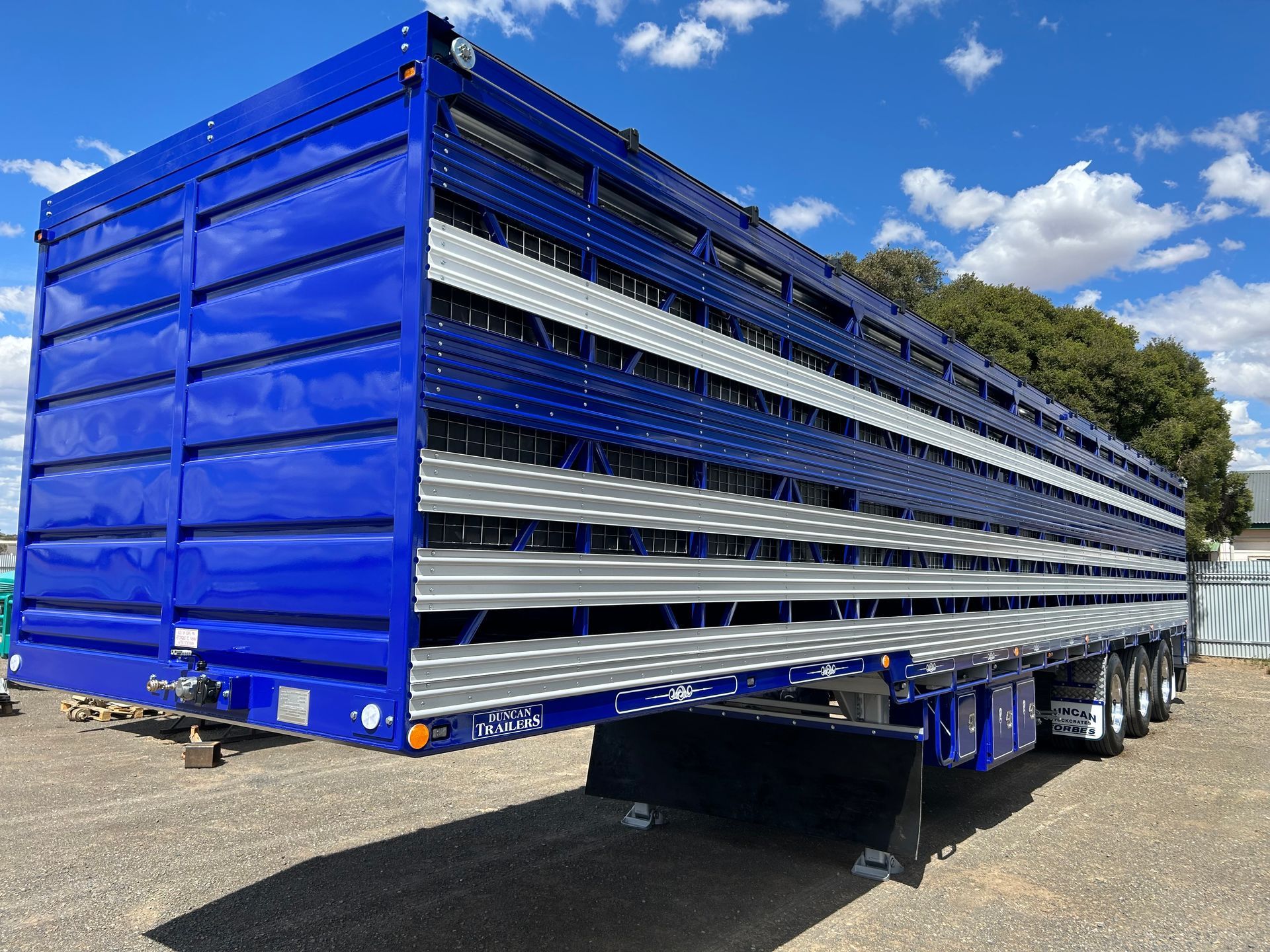

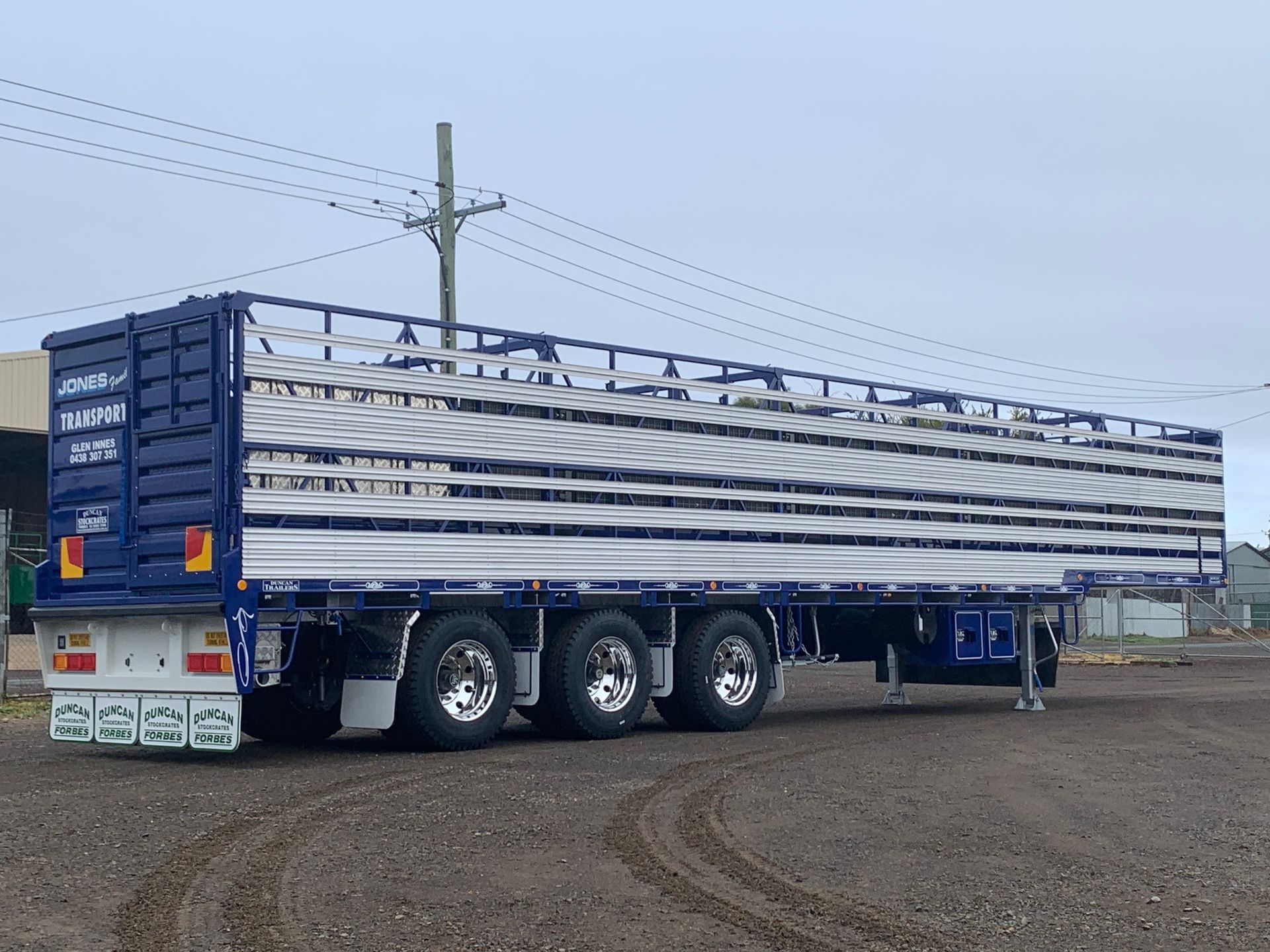

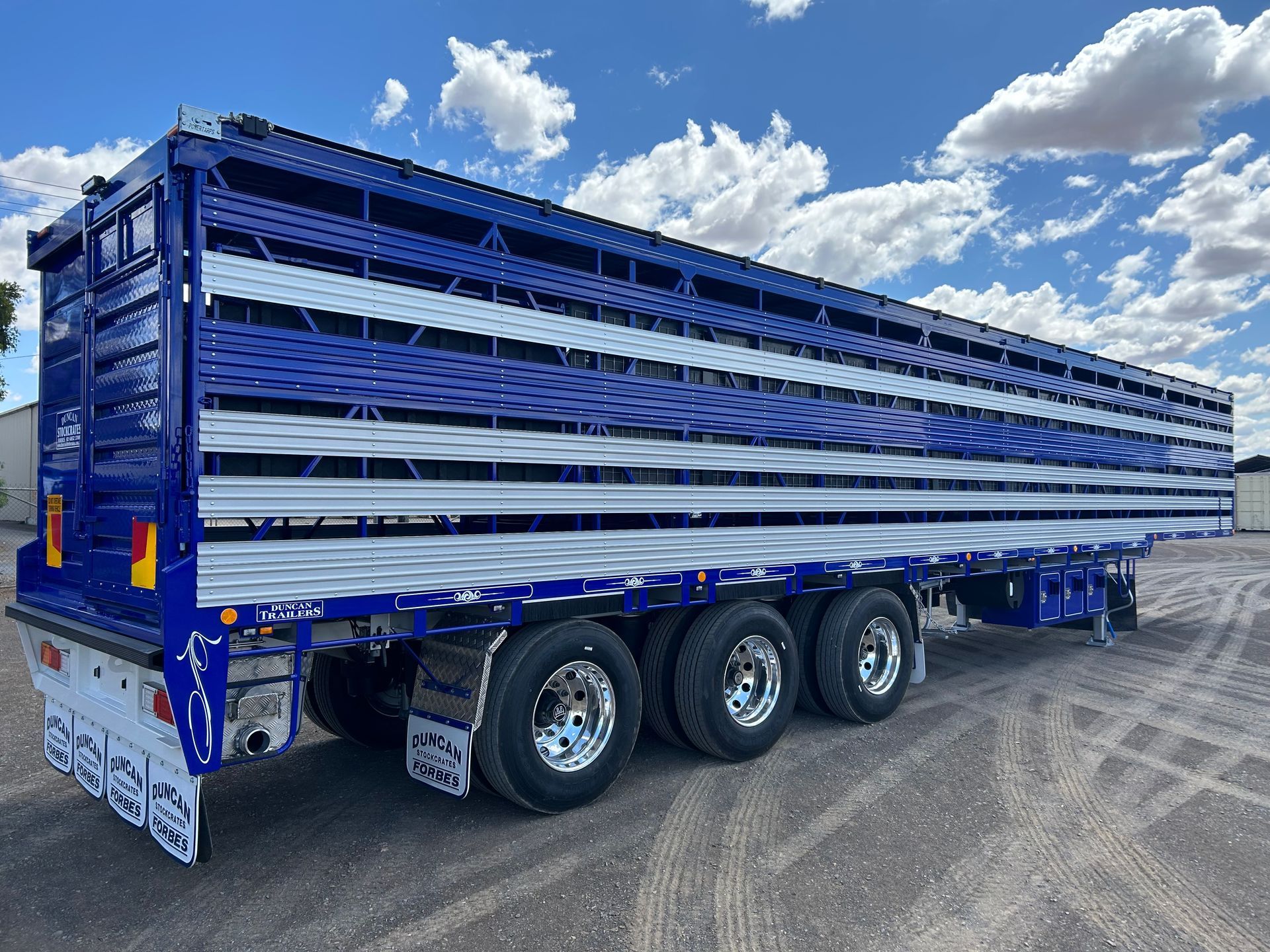

2x1 Semi Trailer - Mono Style Crate

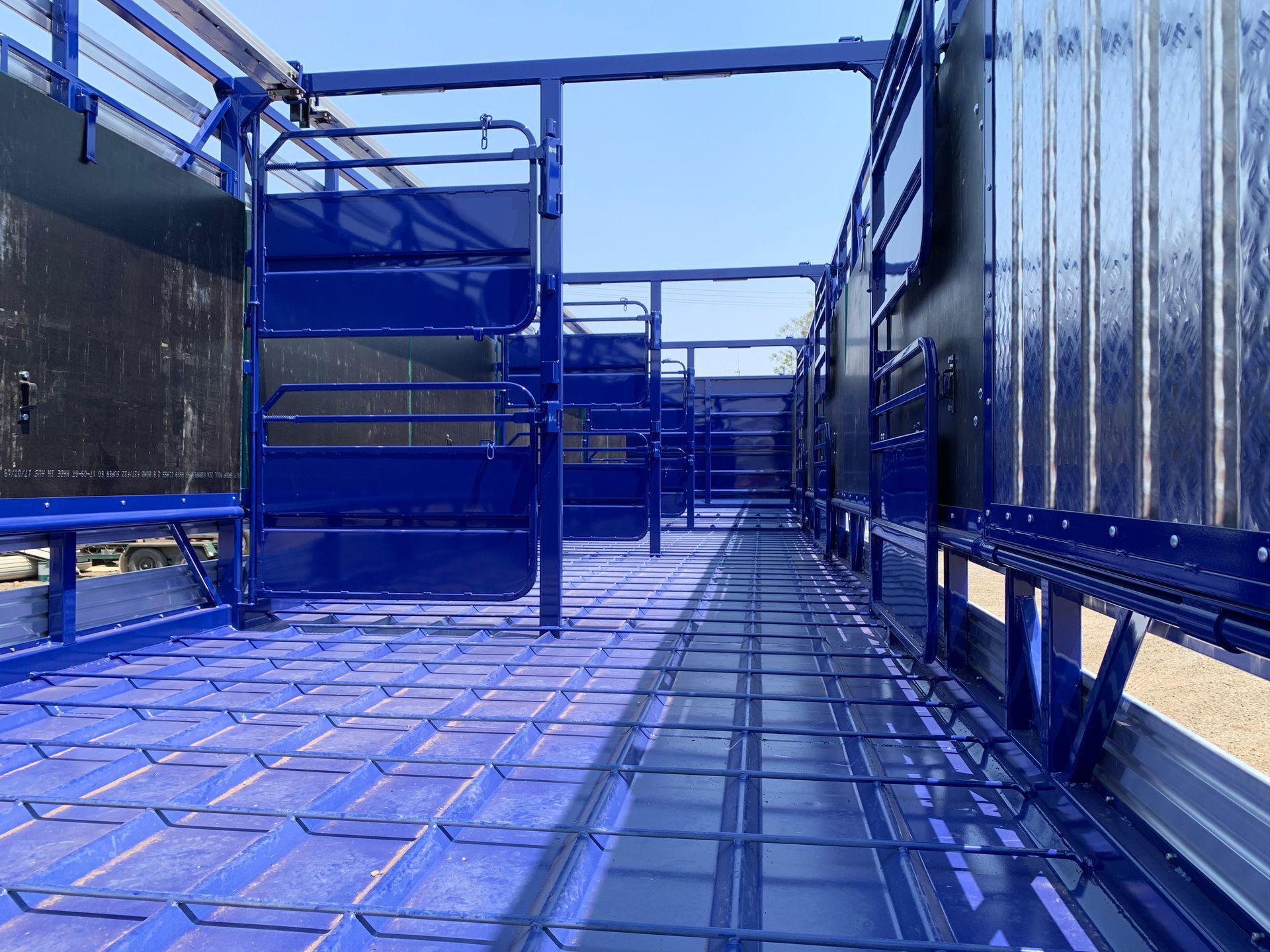

Duncan Stockcrates offers carriers and graziers alike full time livestock transport capabilities with our range of mono style 2x1 livestock trailers. A purpose built trailer that specializes in the safe and efficient transport of cattle, sheep, goats or pigs, these trailers have full length sealed stock floors and several options for effluent management.
- Custom lengths from 12.500mtrs (41ft) to 14.600mtrs (48ft)

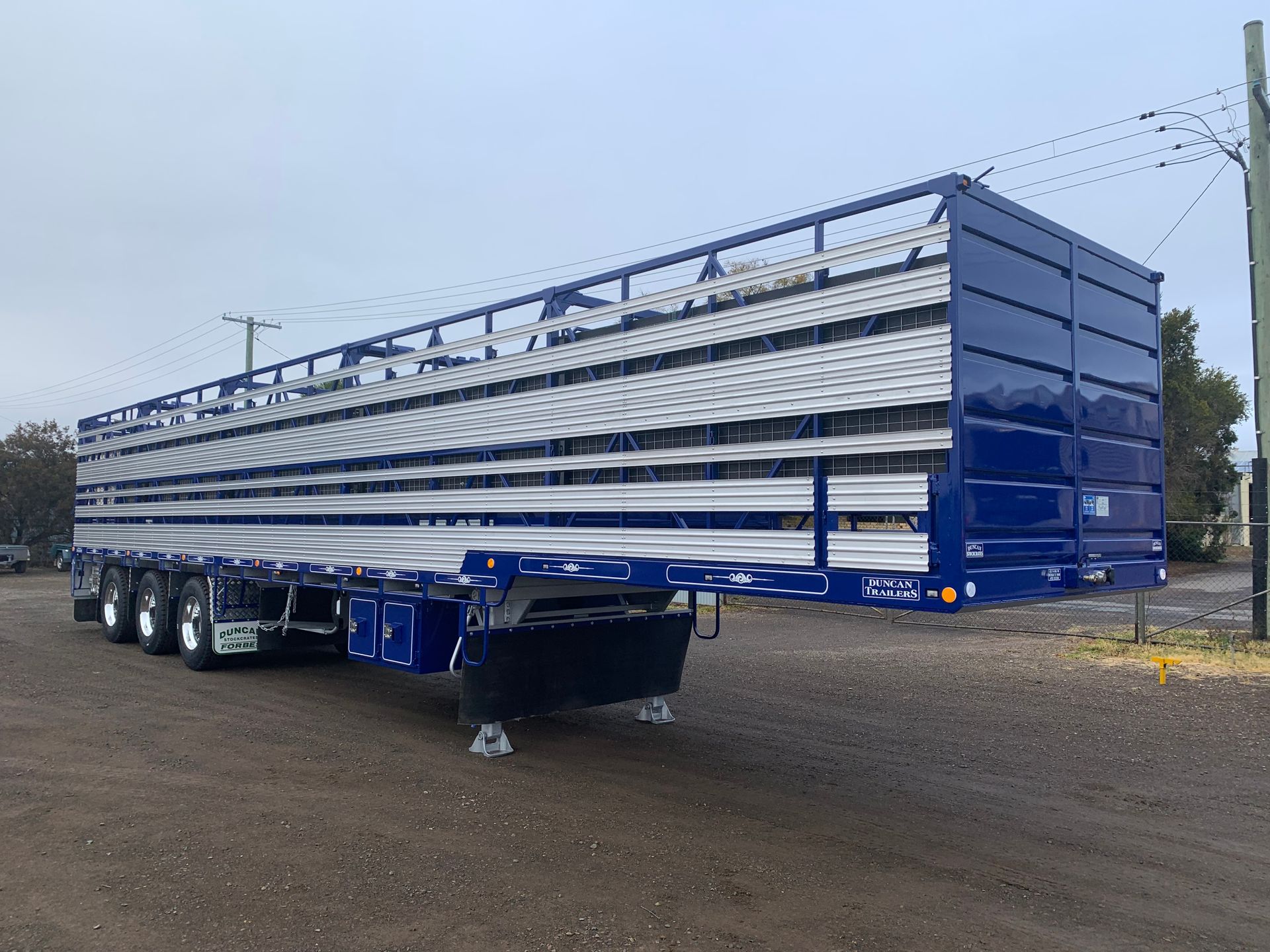

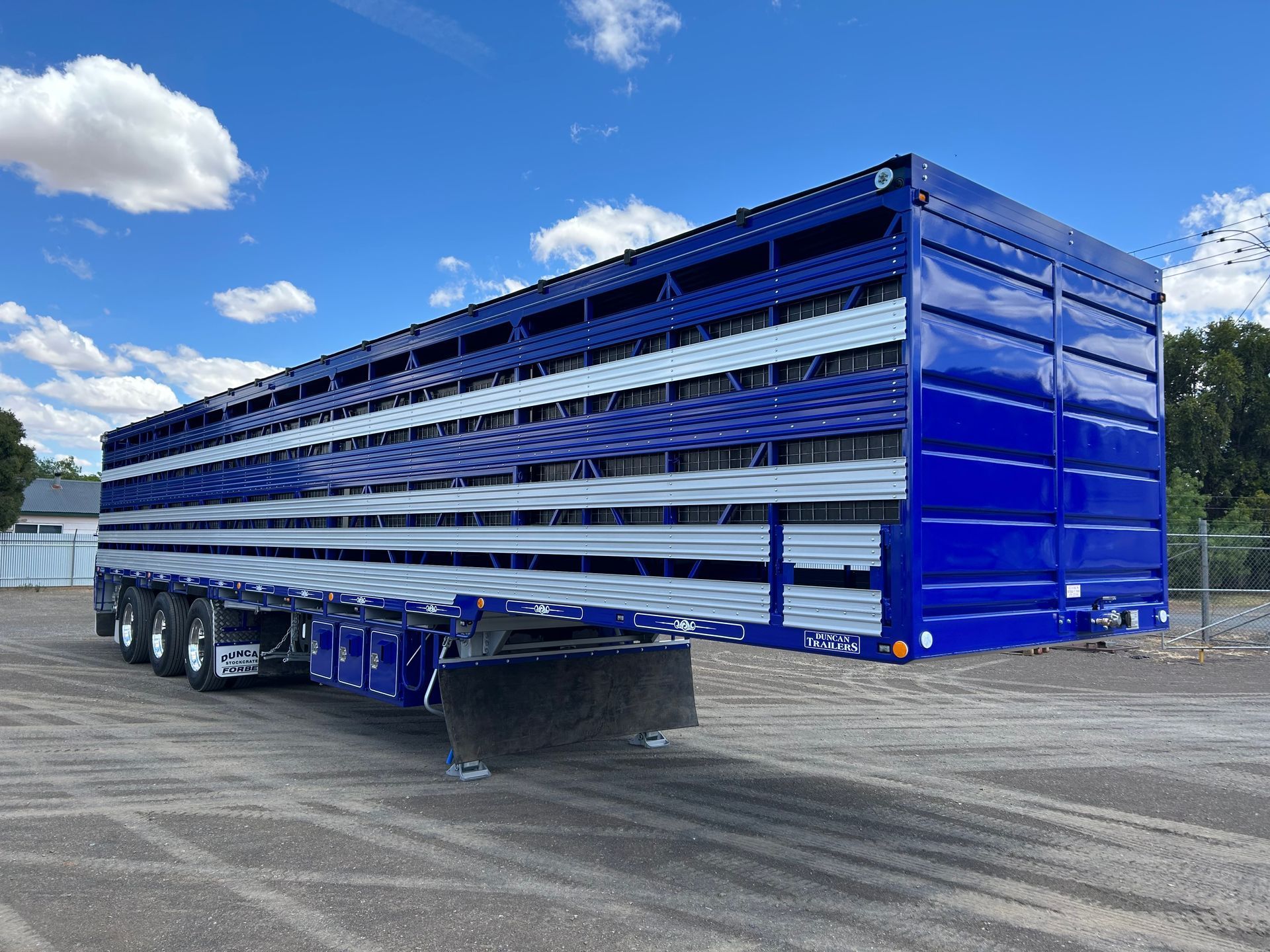

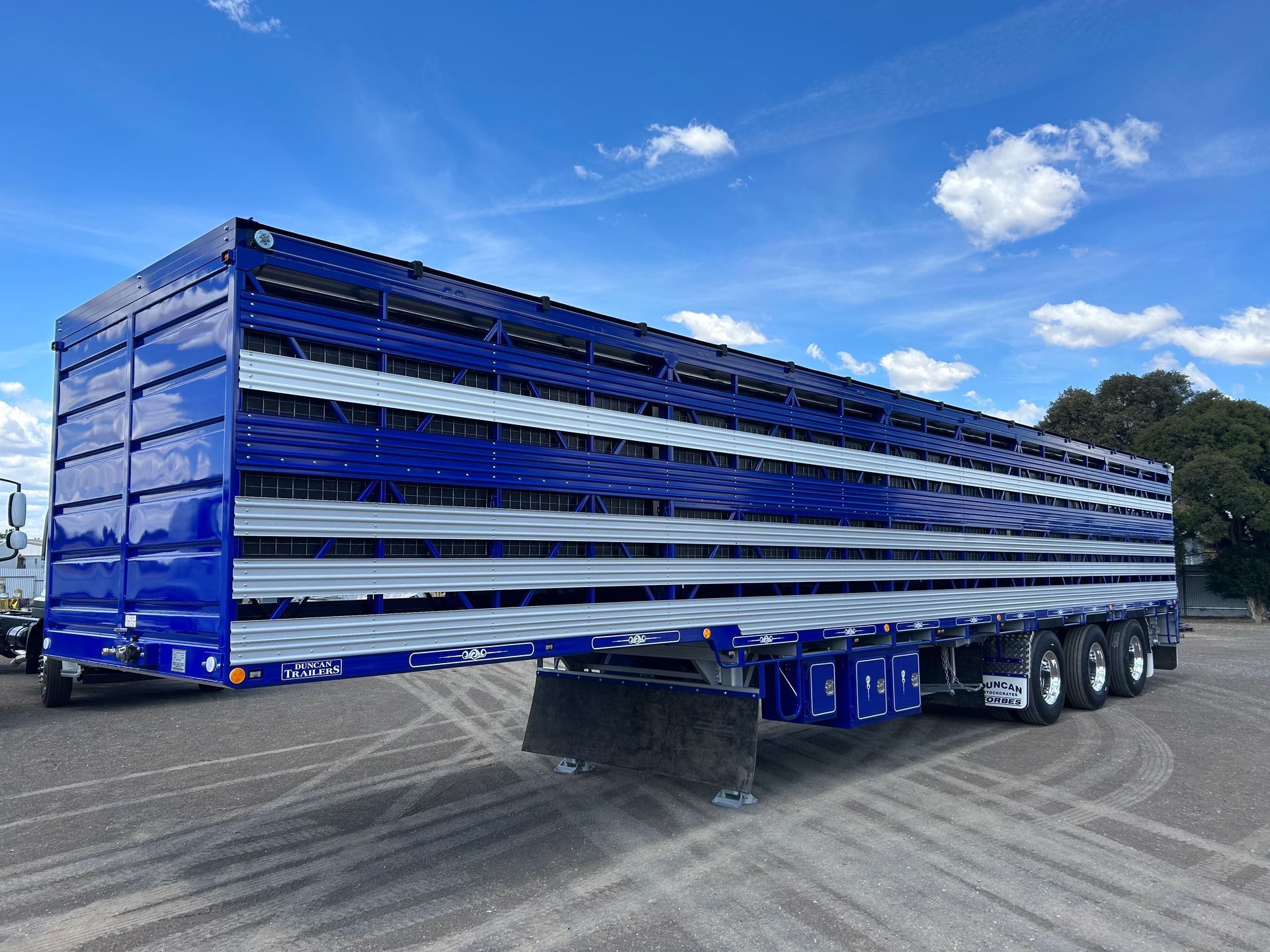

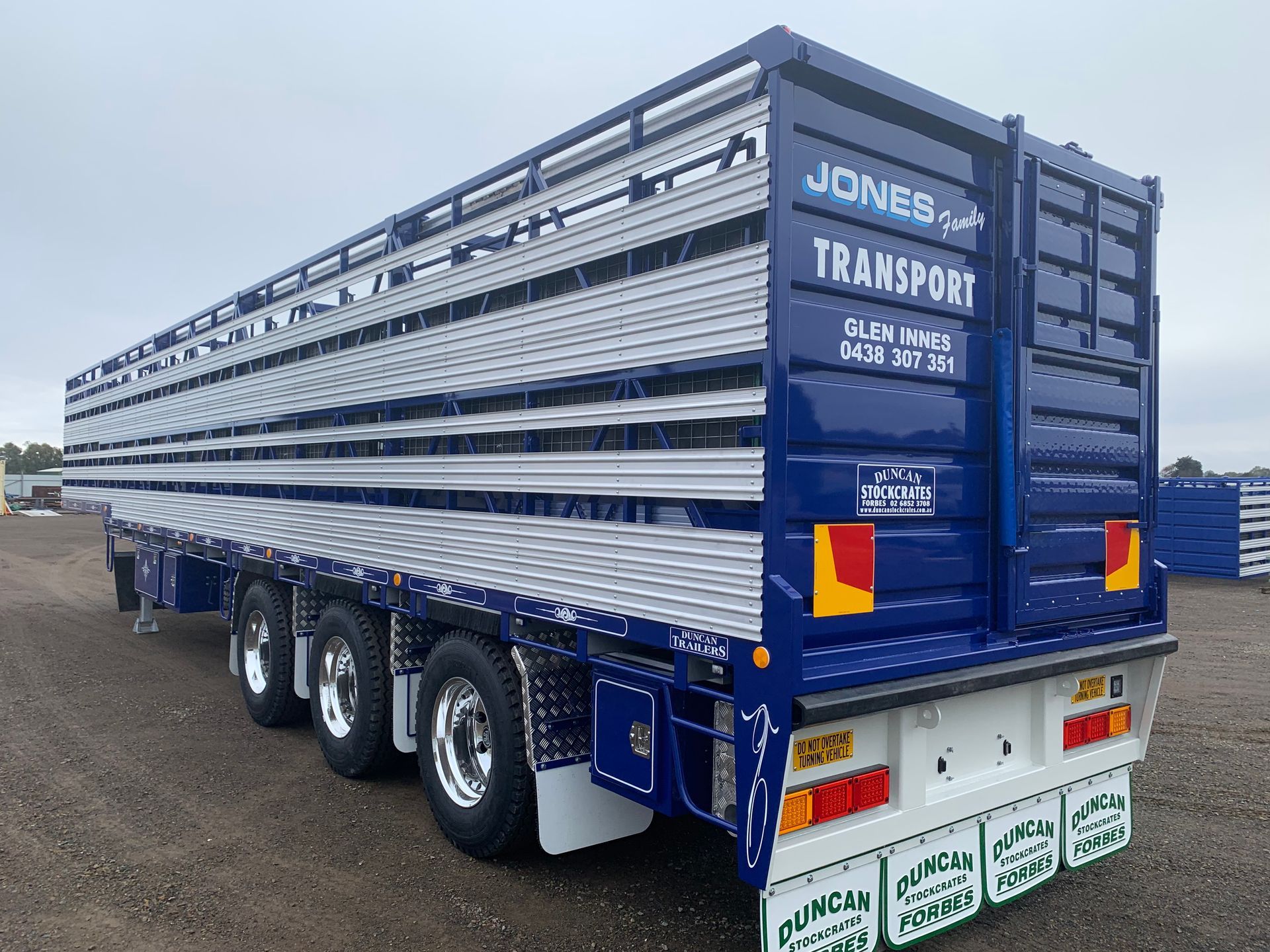

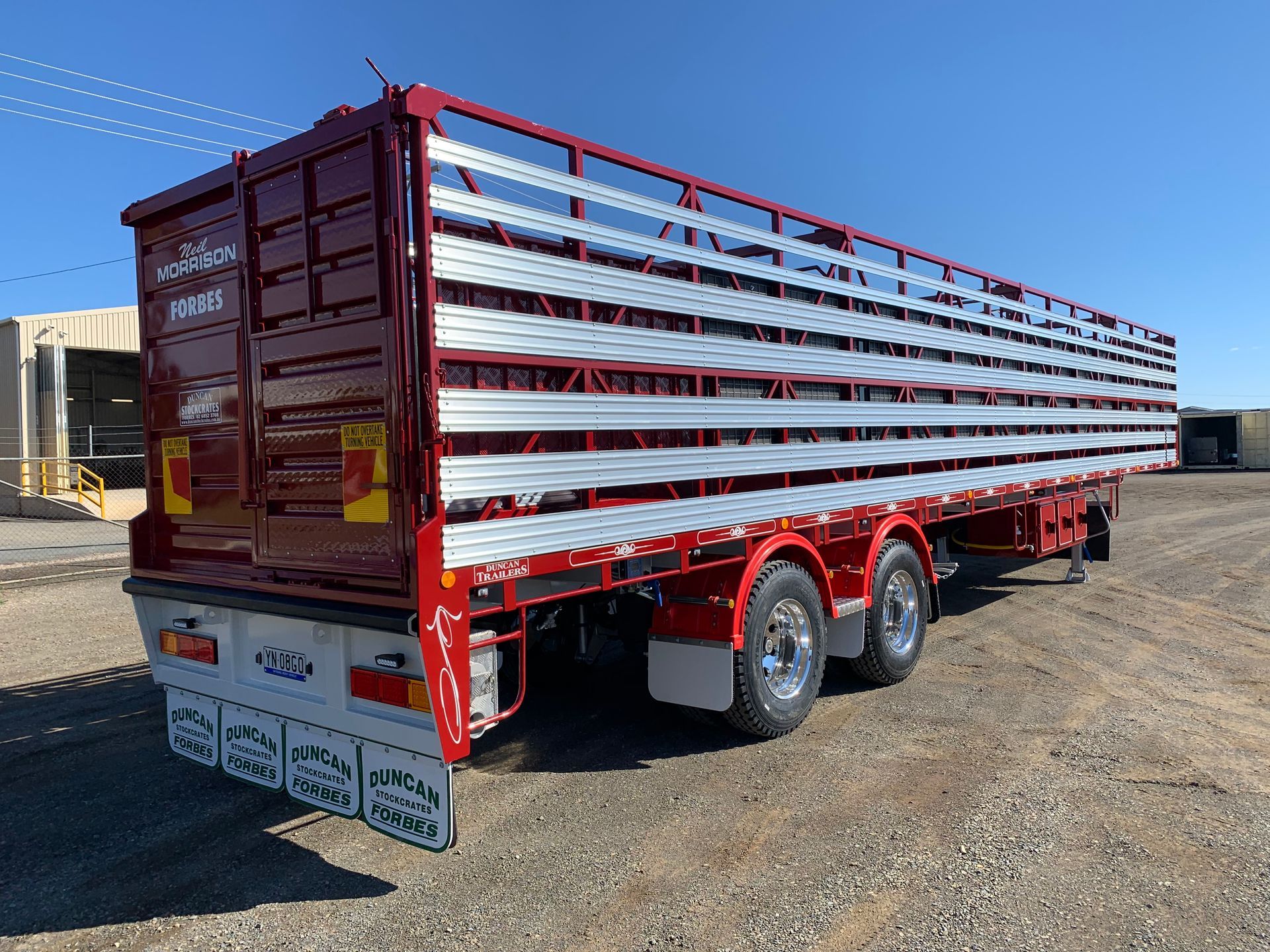

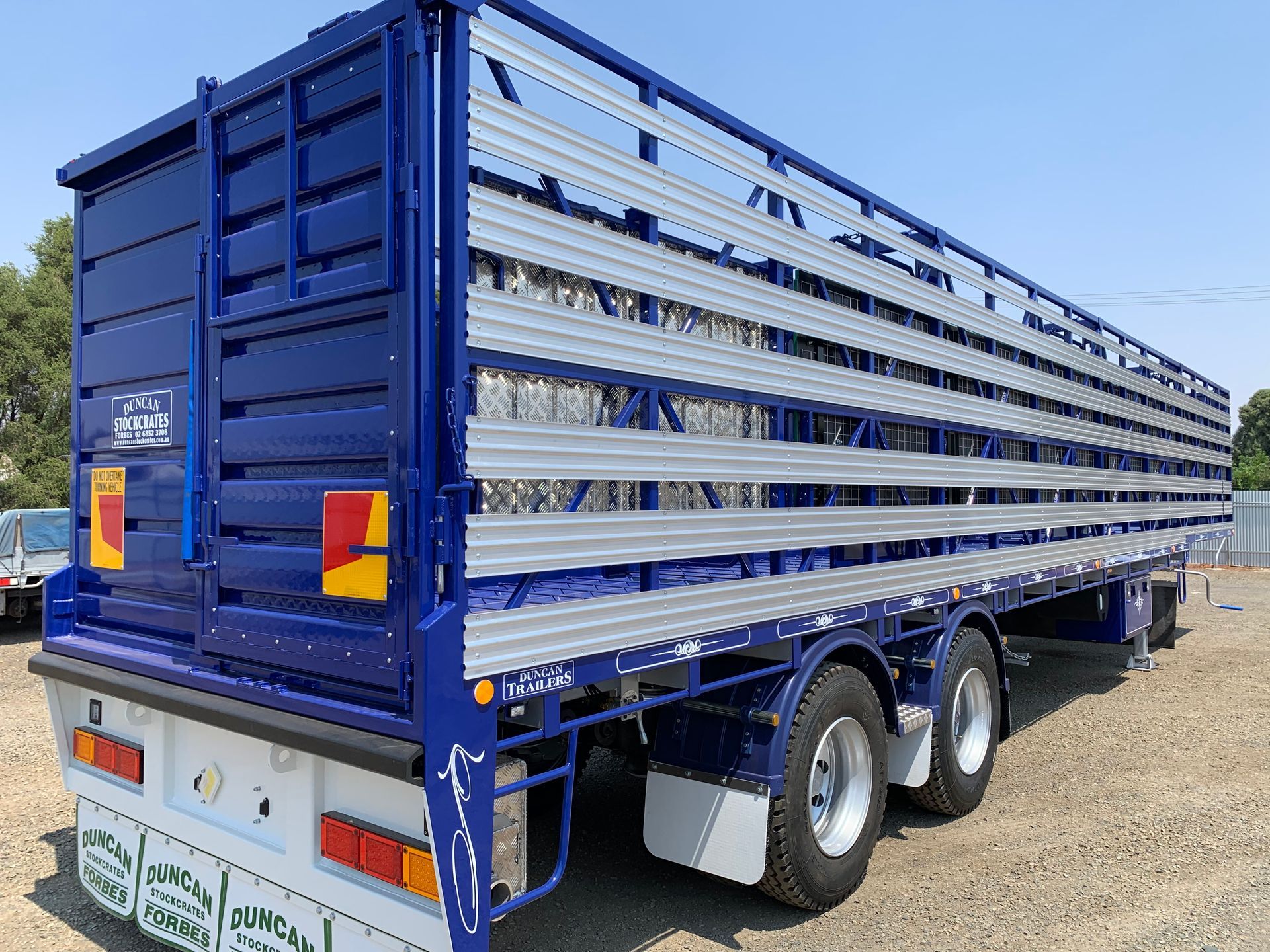

- Options for tandem axle or tri axle configurations
- BPW Transpec or TMC heavy duty axle and suspension layouts
- Wabco TEBS braking system and TASC suspension height control valve
- Jost bolt in kingpin and 2 speed landing gear
- Option of exposed beam or beamless skid plates
- LED trailer lighting to suit individual customer requirements
- Fully optional underbody including choice of mudguards, effluent tanks, tool and dog boxes, hose reels & tyre carriers
- Complete customization of pen lengths, deck heights and gate configurations
- All gates slam shut and have storage keepers or chains for all positions as required

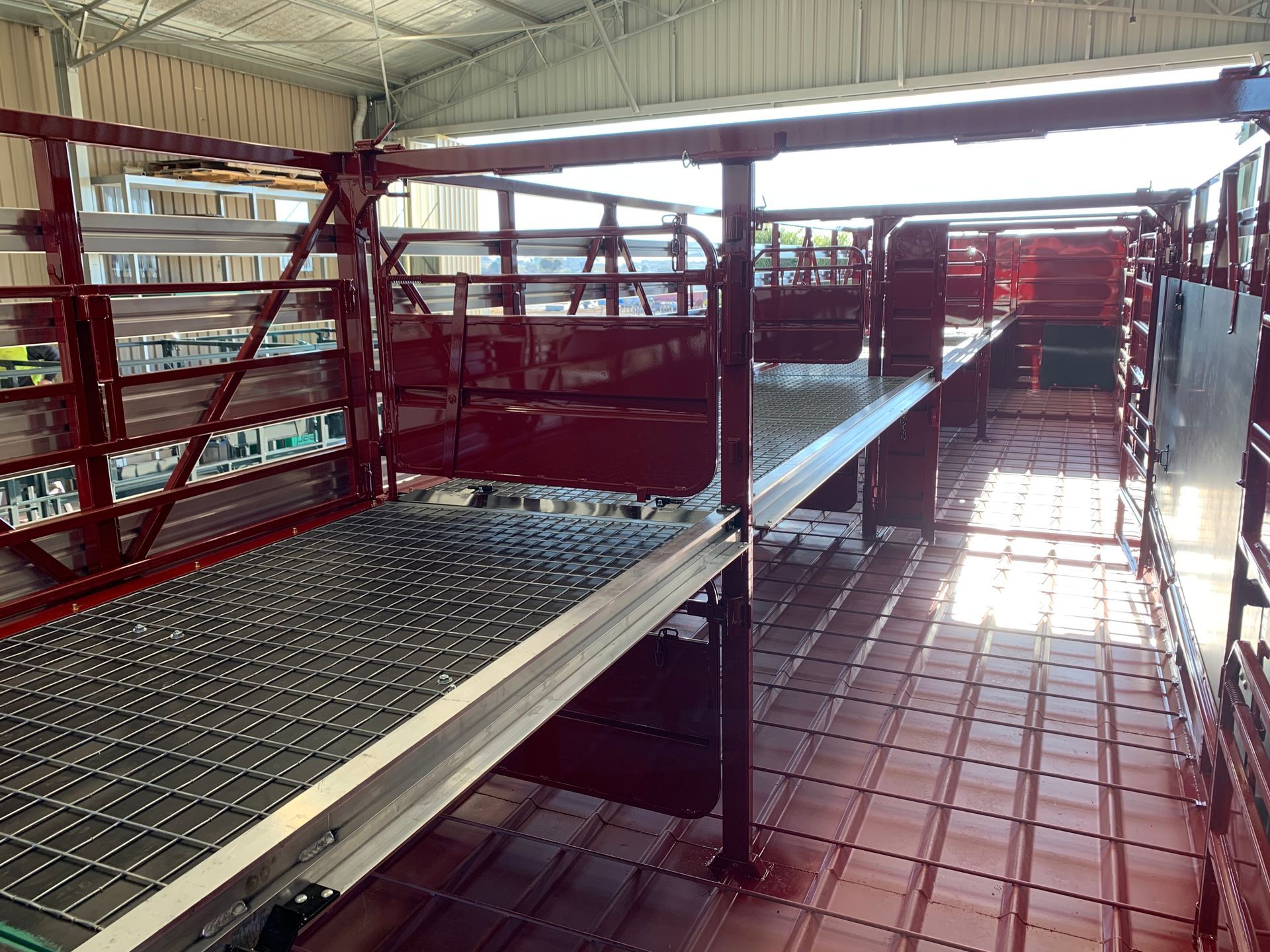

- Hardwood formply sheep decks on aluminium cranks, with option of Thermolite composite decks if preferred
- Aluminium sheep deck carriers throughout
- Steel drop ramp in rear pen with pressed aluminium insert, with option of full aluminium construction for considerable weight saving
- Hand or Warn electric winch at rear for lifting ramp
- Swinging rear blocking gates, with option of sliding gates
- Slide and drop rear door, with pressed aluminium insert and spring for easy lifting
- Complete customization of features throughout including removable centre posts, rolling pen dividers, additional aluminium sideboards, retractable tarps & LED lighting.
- Professionally laser wheel aligned
- Entry onto RAV infrastructure portal, preparation of paperwork to complete NSW registration, or unregistered vehicle permit to interstate registry
All Duncan products are built utilizing Australian 1st class steel and aluminium, and all sheeted panels are manufactured with HW350 grade hot rolled sheet.
Our products are fully sandblasted on site and painted utilizing a 2K painting process.
All products receive 1 coat of 2K epoxy primer and 2 coats of 2K polyurethane topcoat, ensuring outstanding gloss retention, corrosion resistance and long term durability.
For further information please do not hesitate to contact our sales team on
(02) 6852 3708, or fill out an enquiry form and our sales team will offer our assistance.
