Single Deck Truck & Pig Trailer - Removable Crates

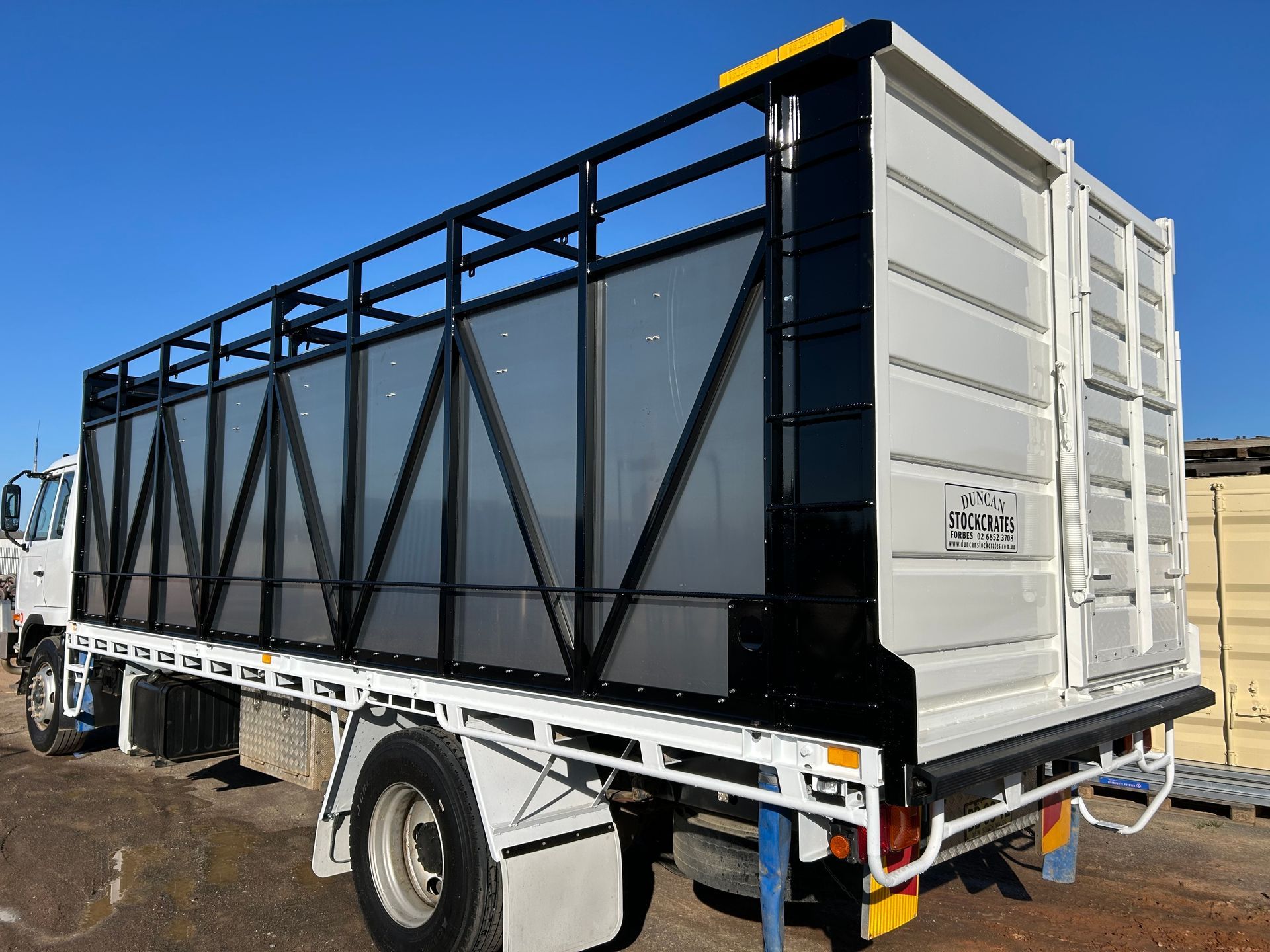

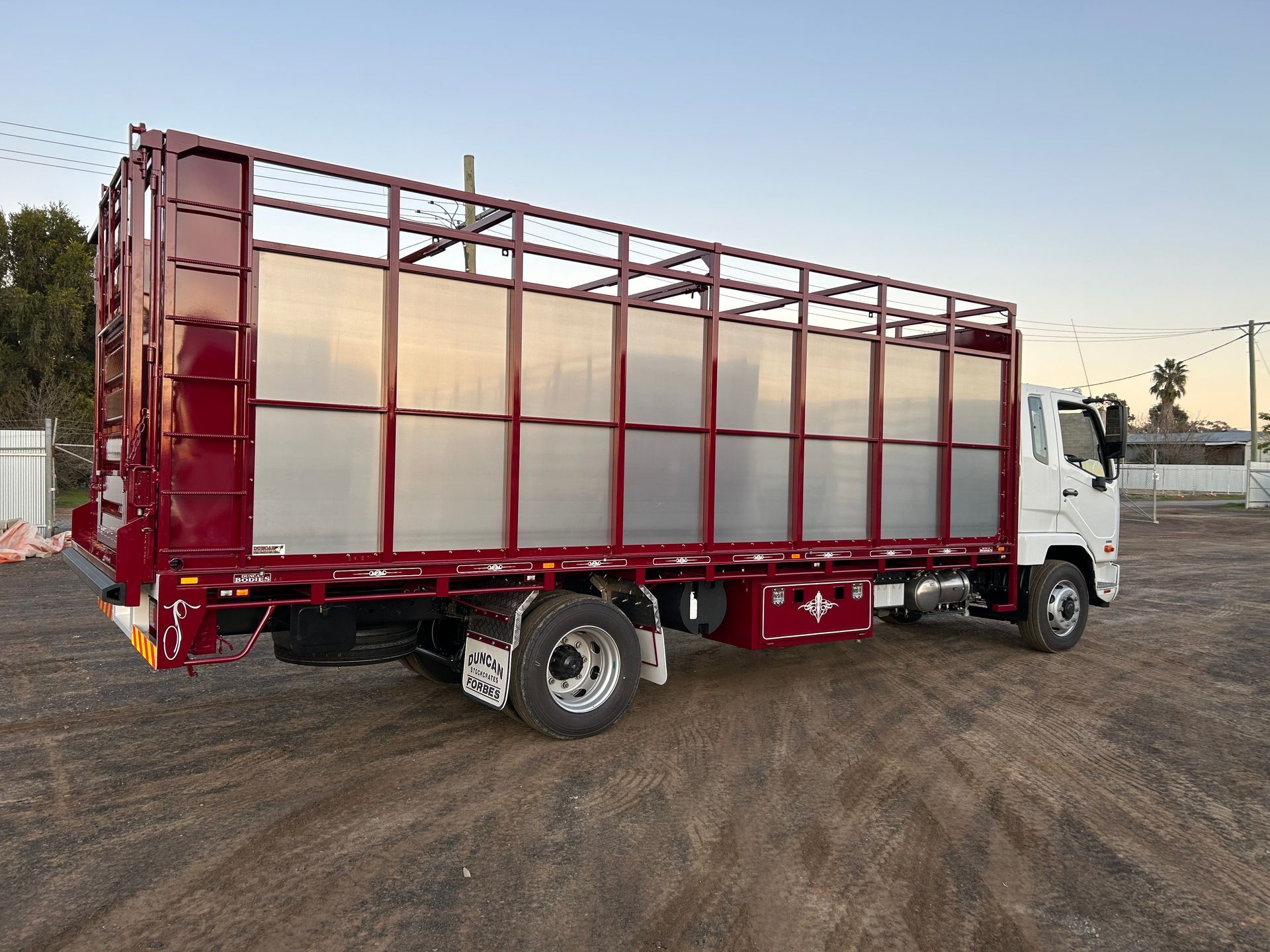

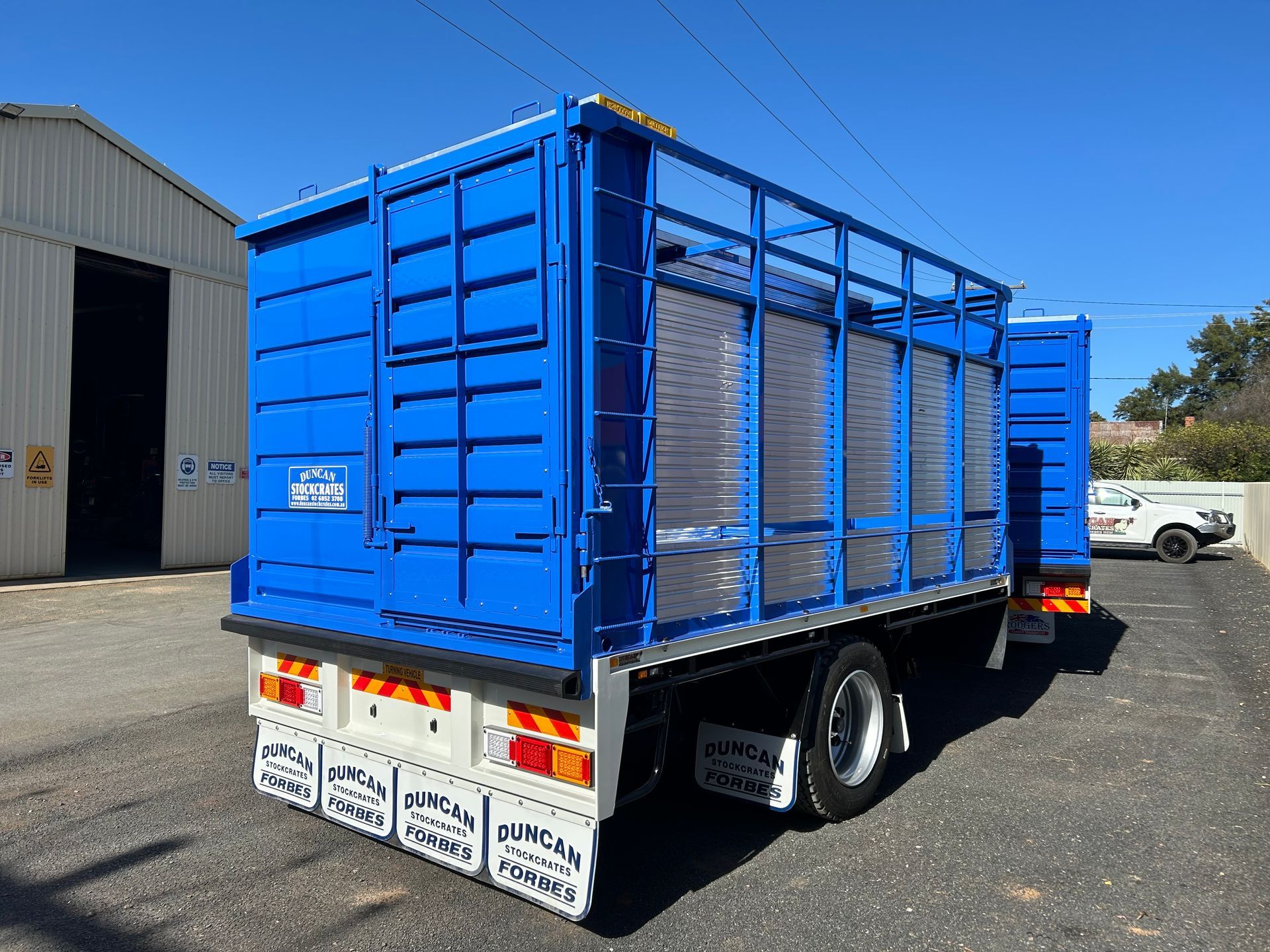

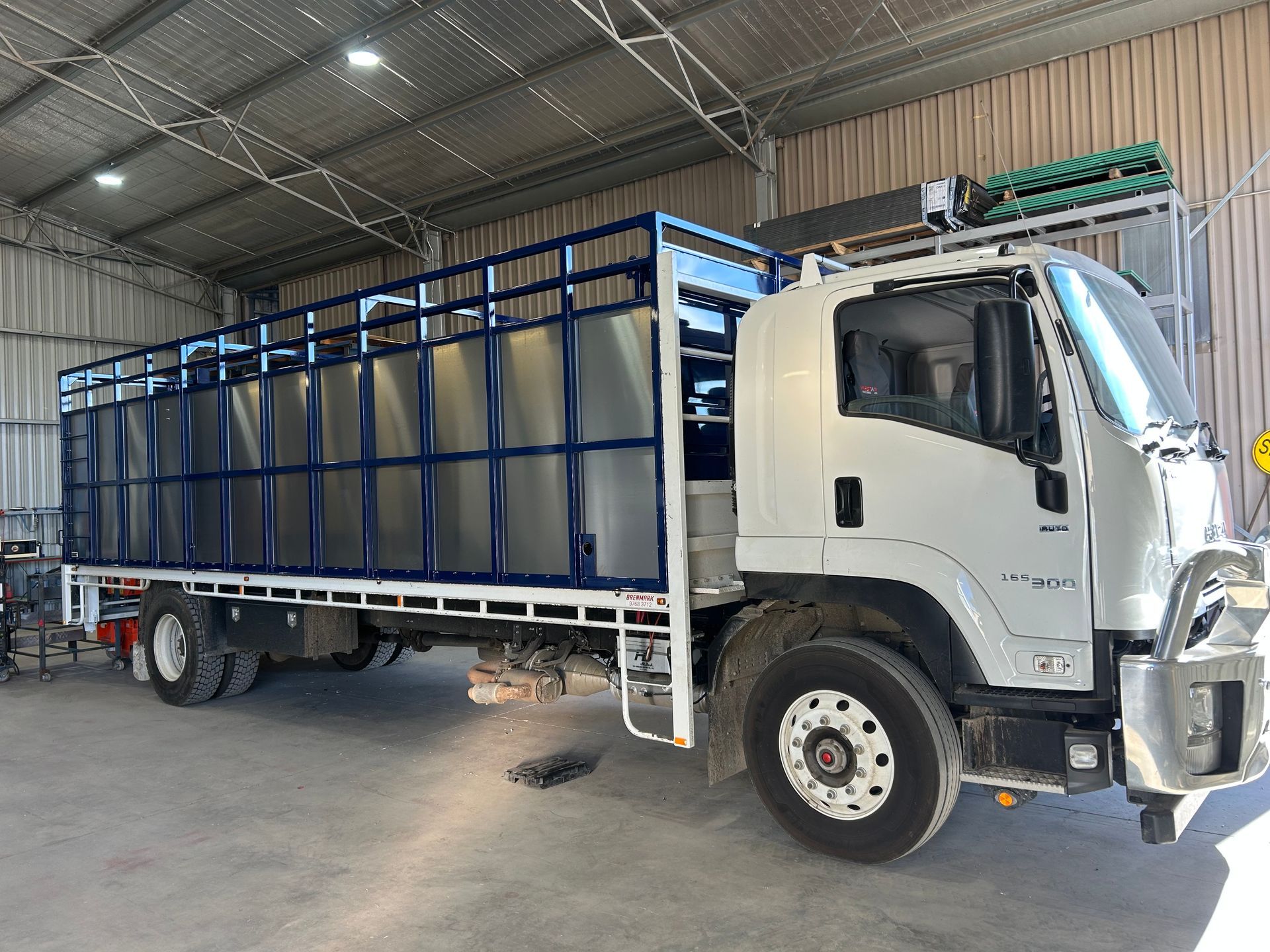

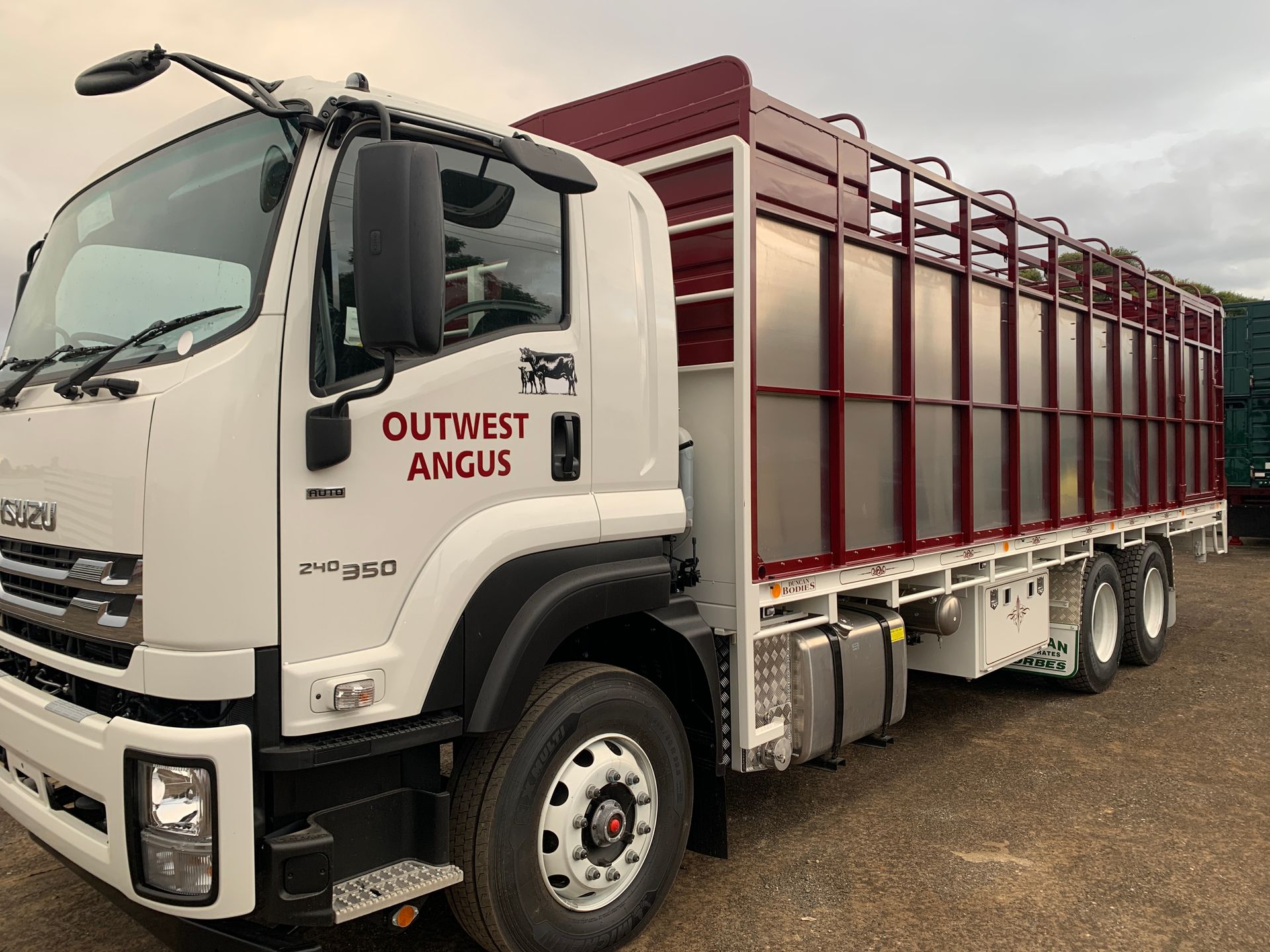

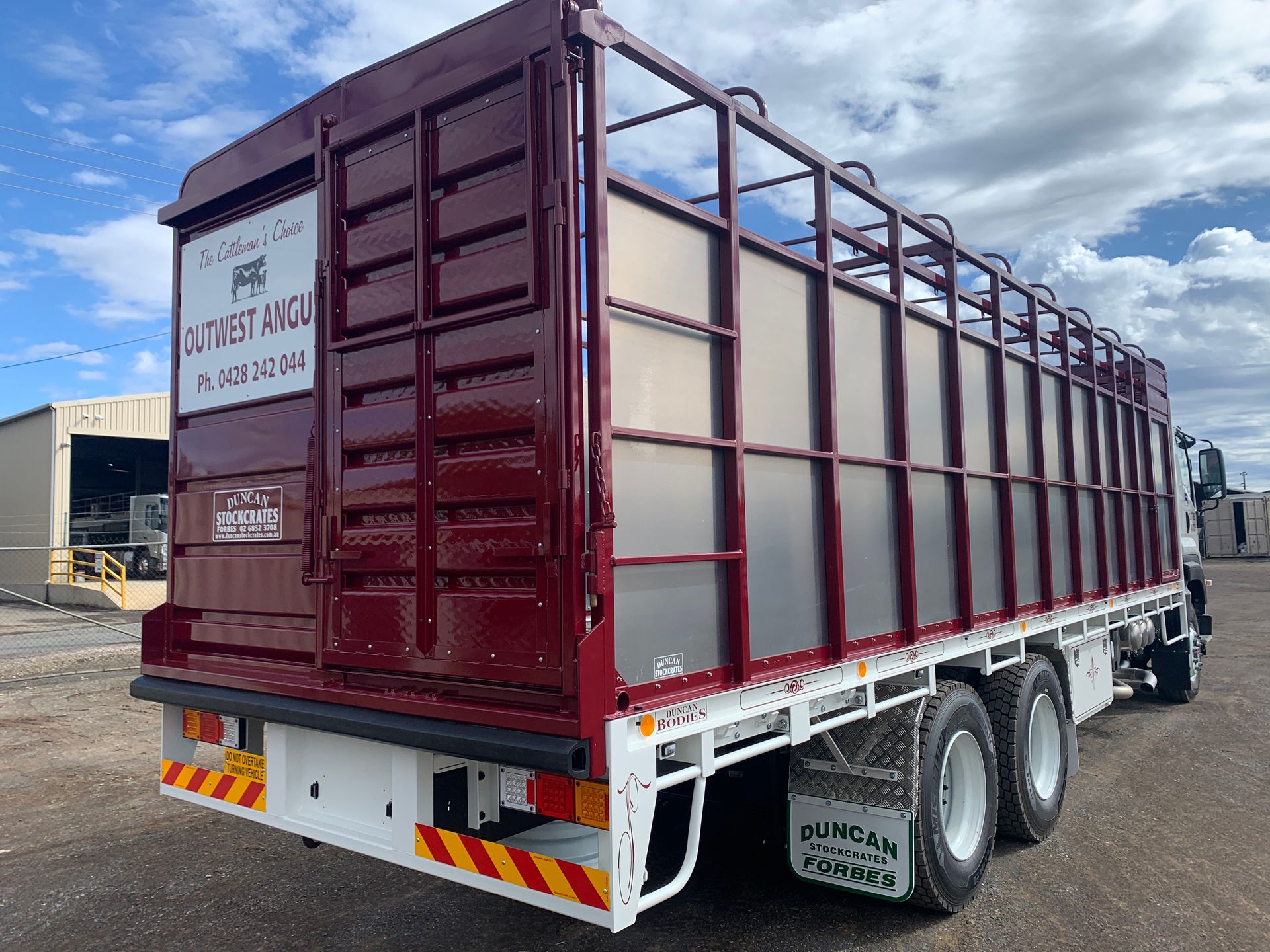

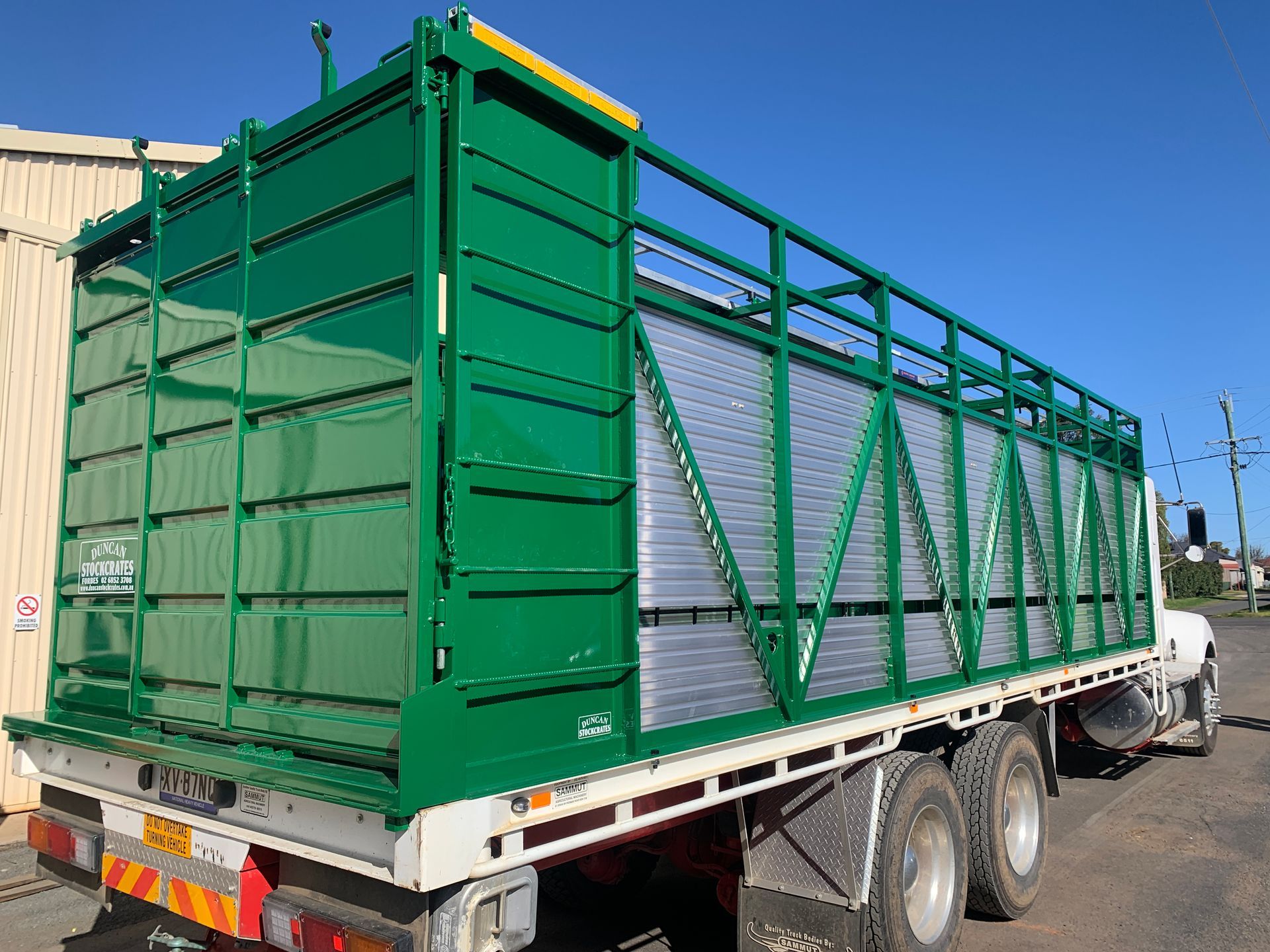

Duncan Stockcrates offers carriers and graziers alike full flexibility with our range of removable single deck cattle crate truck and pig trailer combinations. Whether you are looking for a truck tray for an existing cab chassis, a removable cattle crate for your new truck, or looking to add a pig trailer to your existing truck, we have the solution for you. Due to the removable nature of this line of stockcrates, trucks can still be used for hay, wool or general freight, whatever that may be.
- Body mounted to truck chassis using combination of fish plating and spring mounts to minimize cracking as chassis twists
- Heavy duty sub rails, cross members and floor runners to support floor
- 5mm fully sealed steel checker plate floor, with option of 3mm hi tensile flat lyten floor if preferred
- Combing rail heights, body heights and widths and rope rail specs to match any existing fleet scenarios for true cross over capabilities
- LED lighting throughout, tailored to each customers individual requirements
- Complete customization of underbody features such as toolboxes, hose reels, dog boxes & effluent tanks
- Fitment of Bartlett towbar with either 127mm Bartlett Ball or 50mm Ringfeder
- Full VSCCS certification prior to leaving our workshop

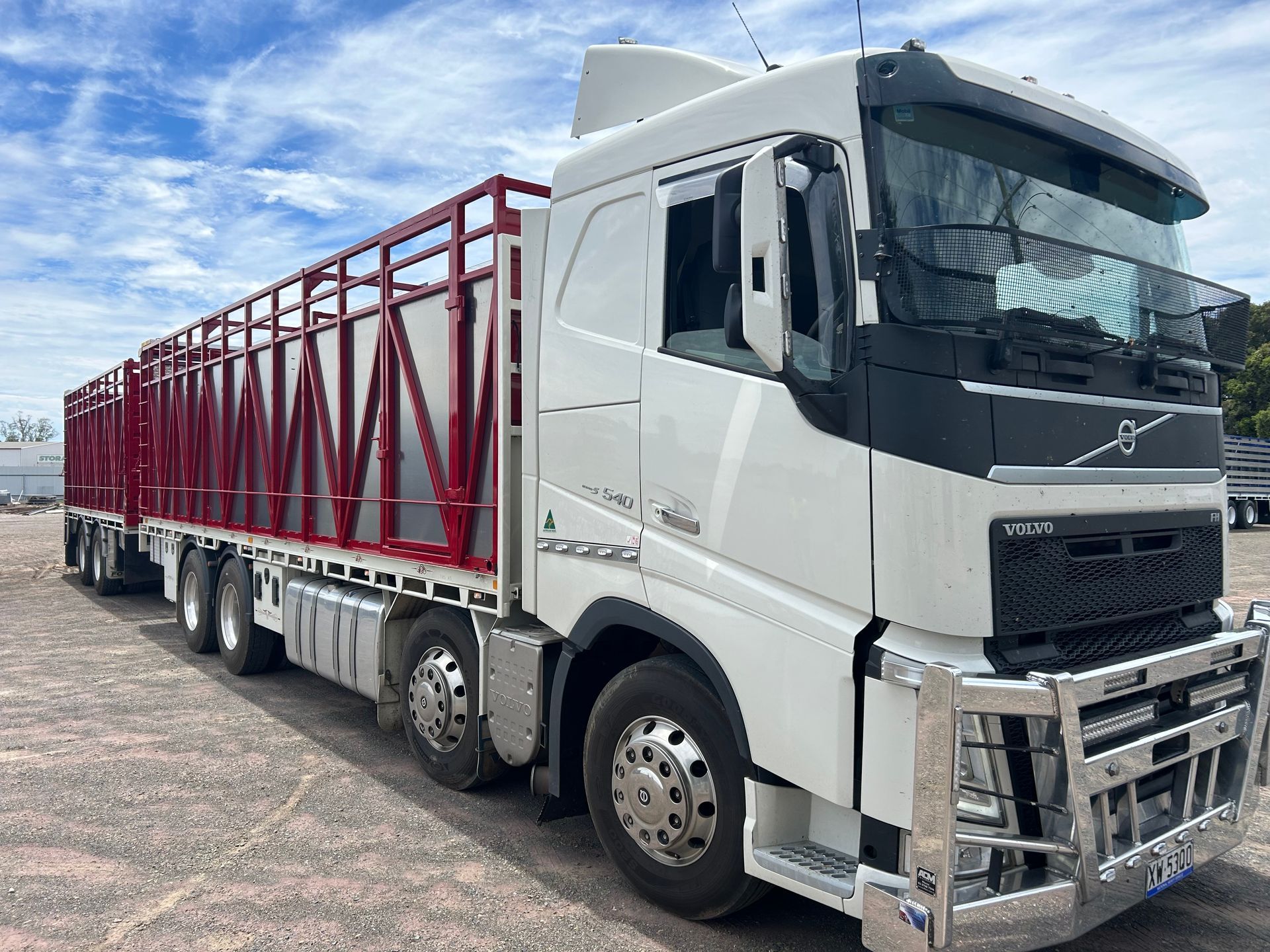

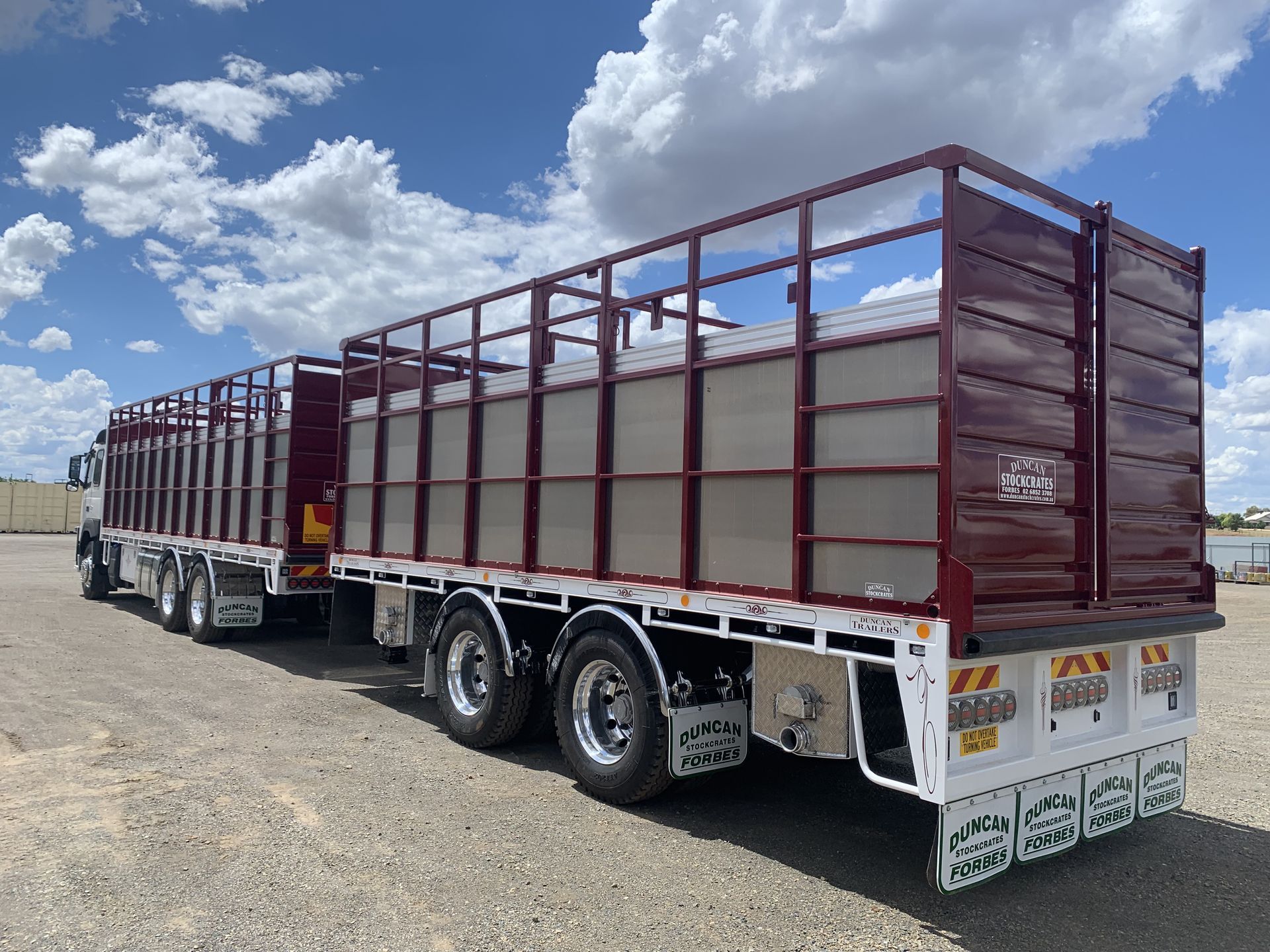

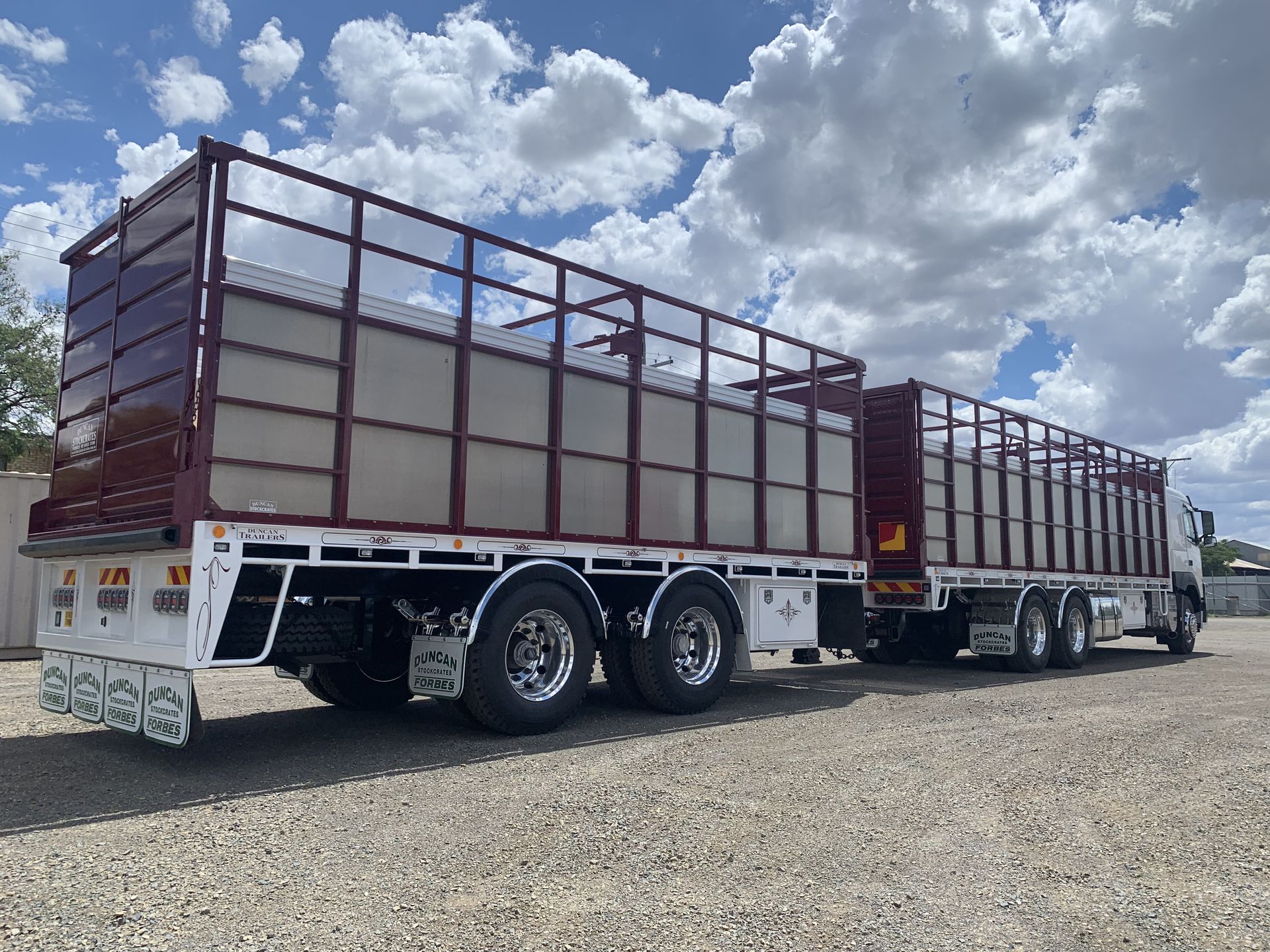

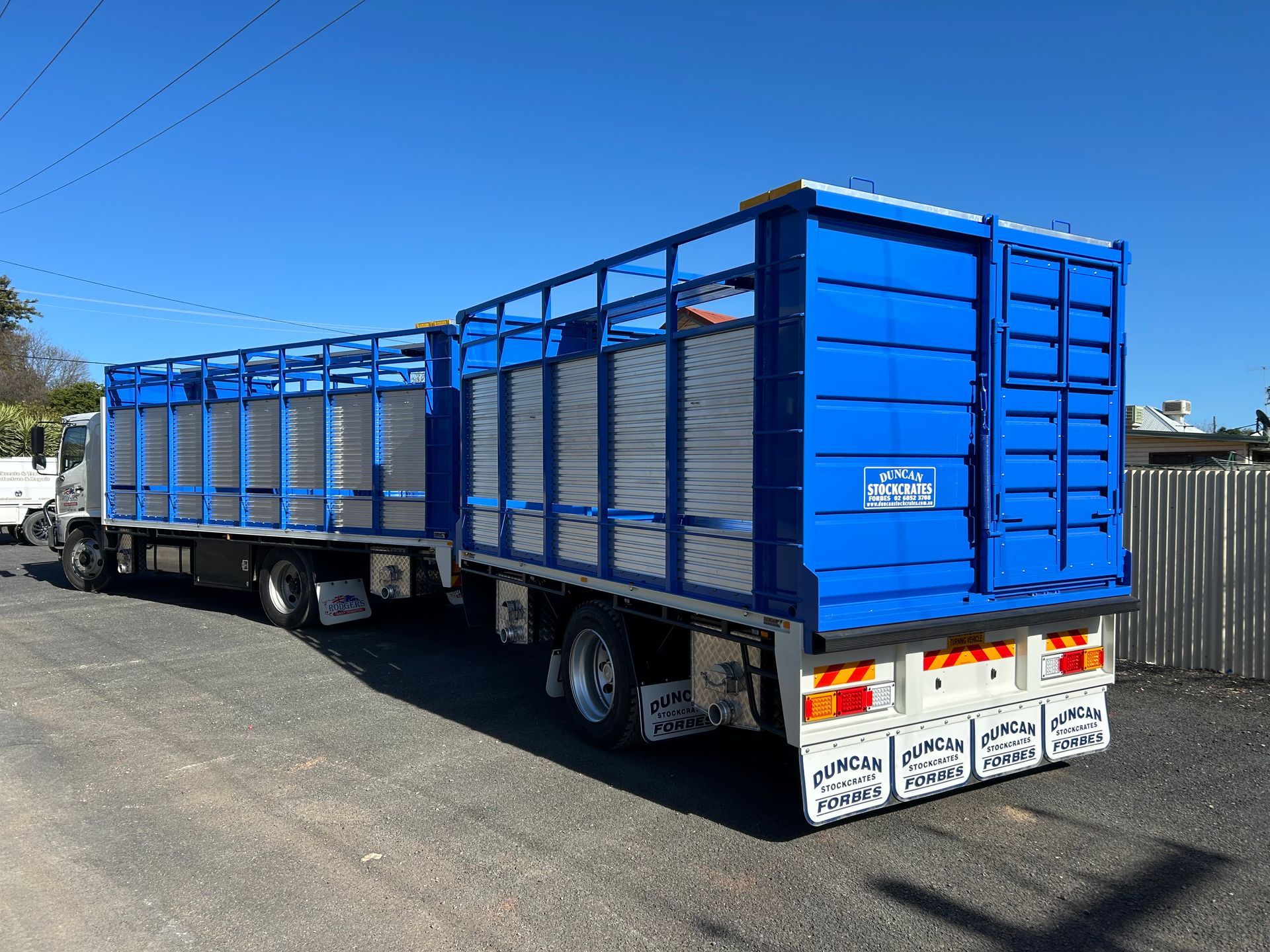

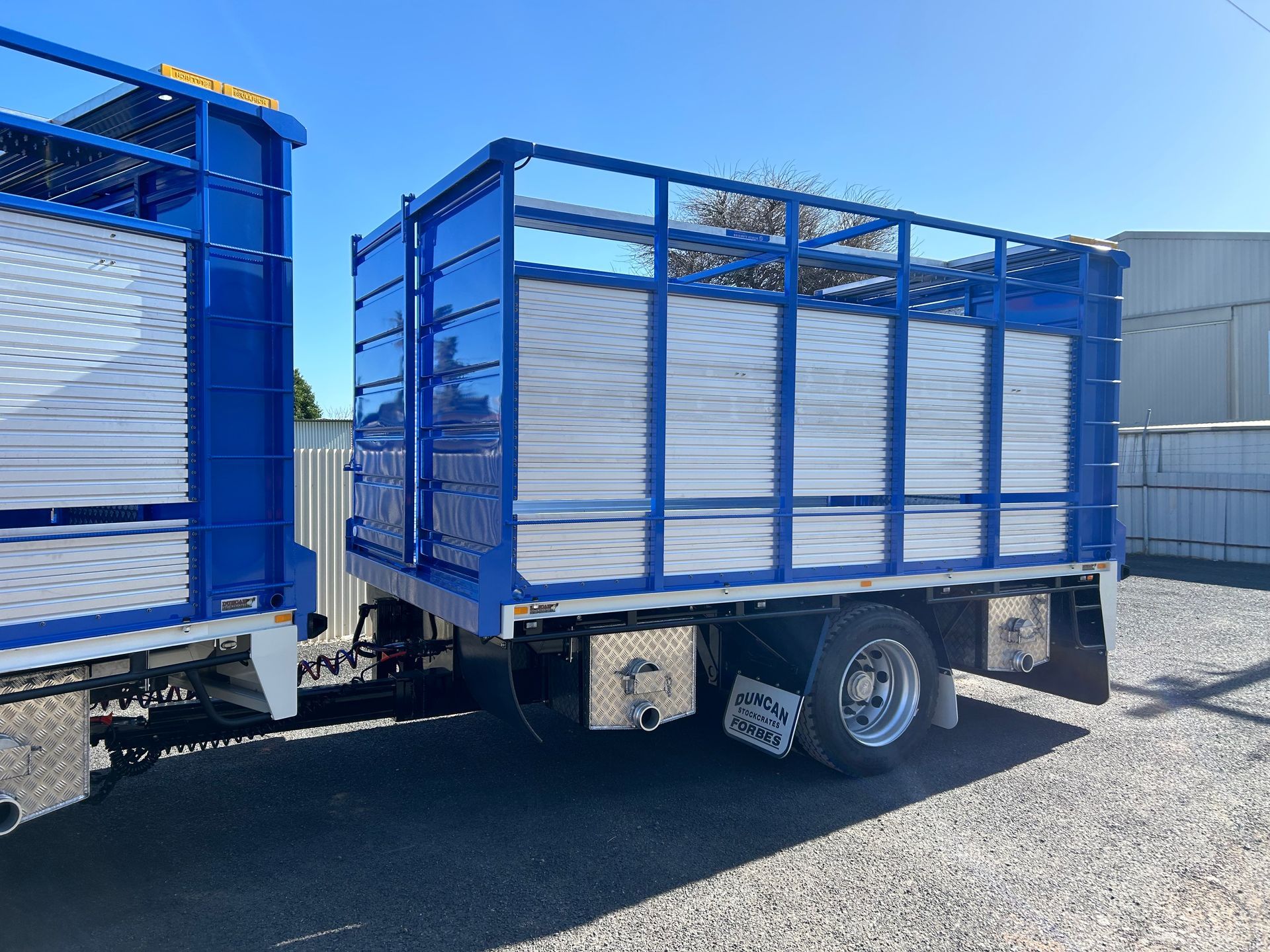

- Options of single, tandem or tri axle pig trailers, with sliding drawbars for livestock load through to truck
- BPW Transpec or TMC heavy duty axle & airbag suspension systems
- Wabco TEBS braking system & TASC valve for suspension height control
- 10 stud alloy wheels fitted with Haulmax 11R 22.5 tyres
- Sliding drawbar with air / electric controlled solenoid operation
- 5mm fully sealed steel checker plate floor, with option of 3mm hi tensile flat lyten floor if preferred
- LED lighting throughout, tailored to each customers individual requirements
- Complete customization of underbody features such as toolboxes, effluent tanks, spare tyre carriers, Right Weigh Gauges & Wabco Smart Boards.
- Professionally laser wheel aligned
- Entry on RAV infrastructure portal, & supply of either required paperwork for NSW registration or an unregistered vehicle permit to an interstate registry

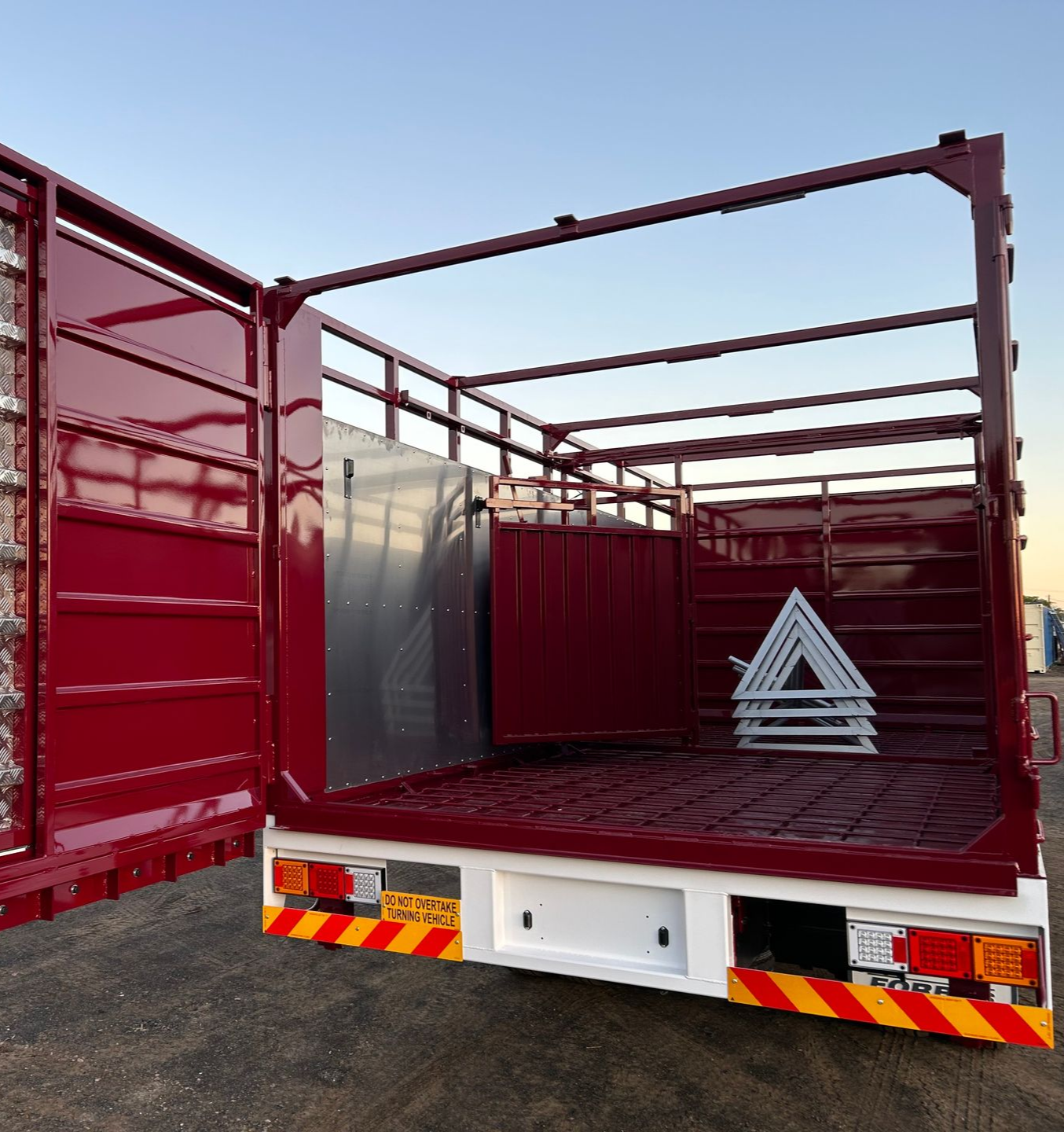

- Complete customization of pen lengths, overall height & cattle gate configurations
- All gates slam shut and have storage keepers or chains for all positions as required +

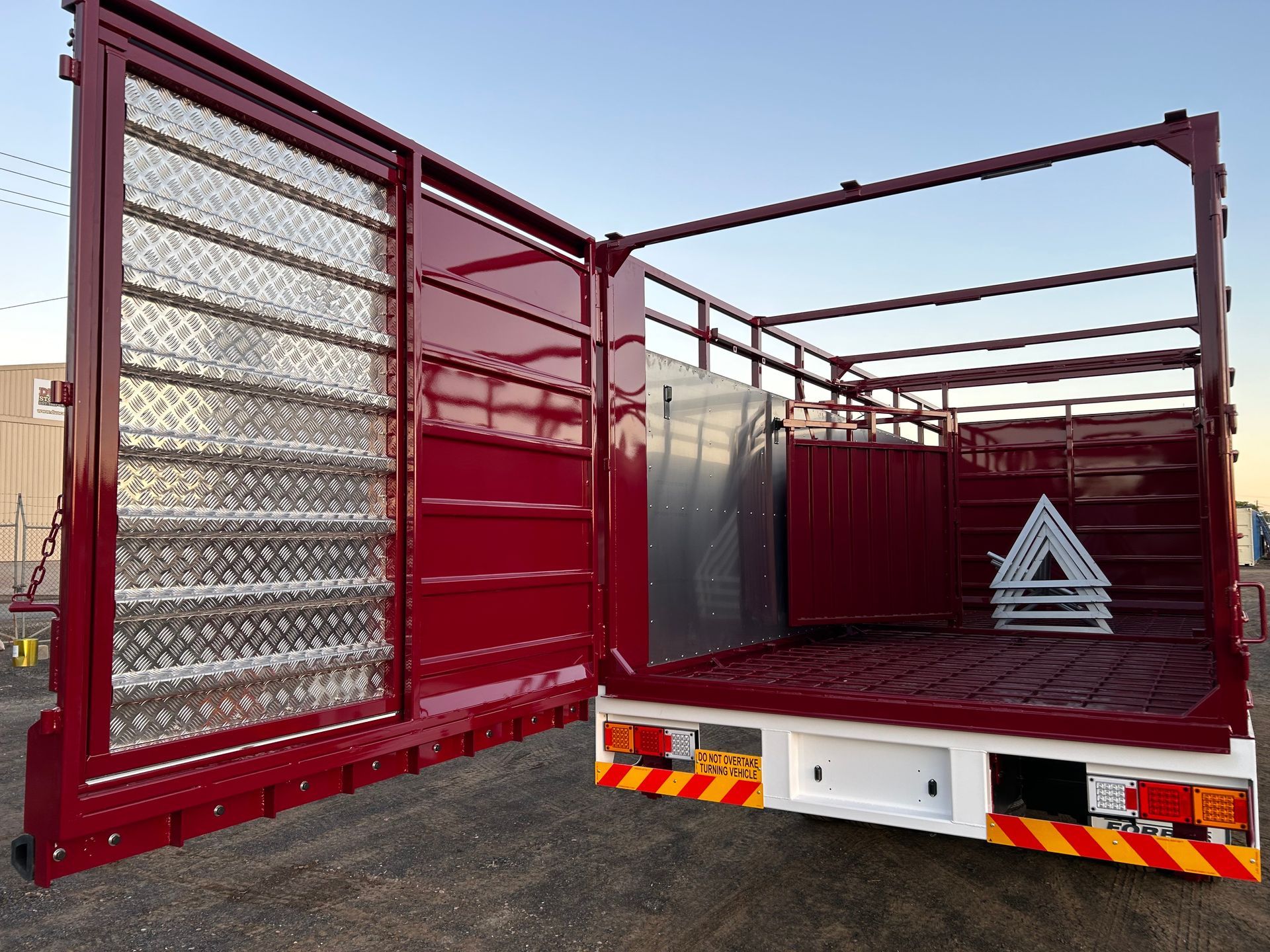

- Internally cladded with 1500mm x 4.0mm hi tensile aluminium sheet for non bruise of cattle

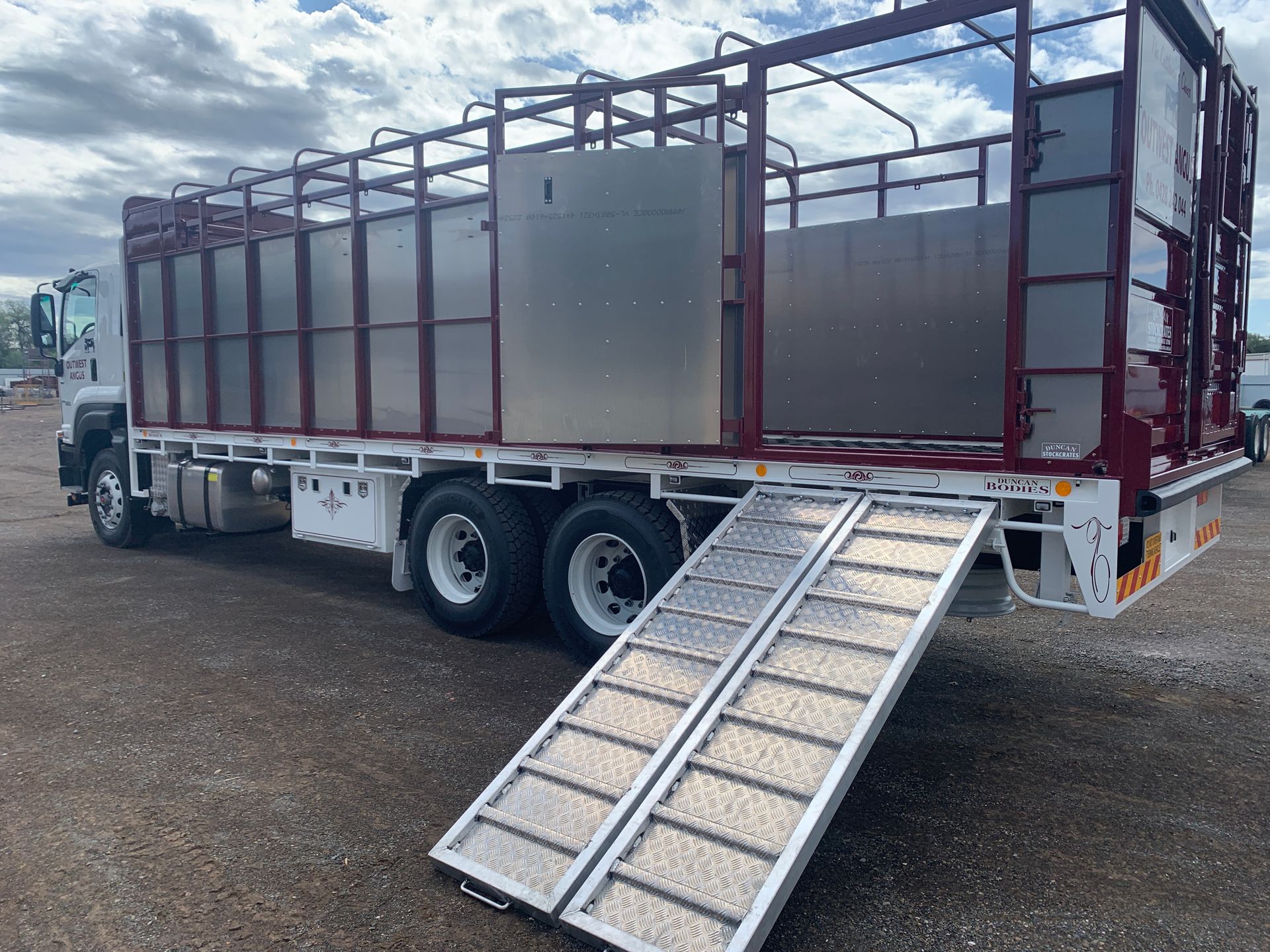

- Option of aluminium catwalks throughout, with access from built in ladders

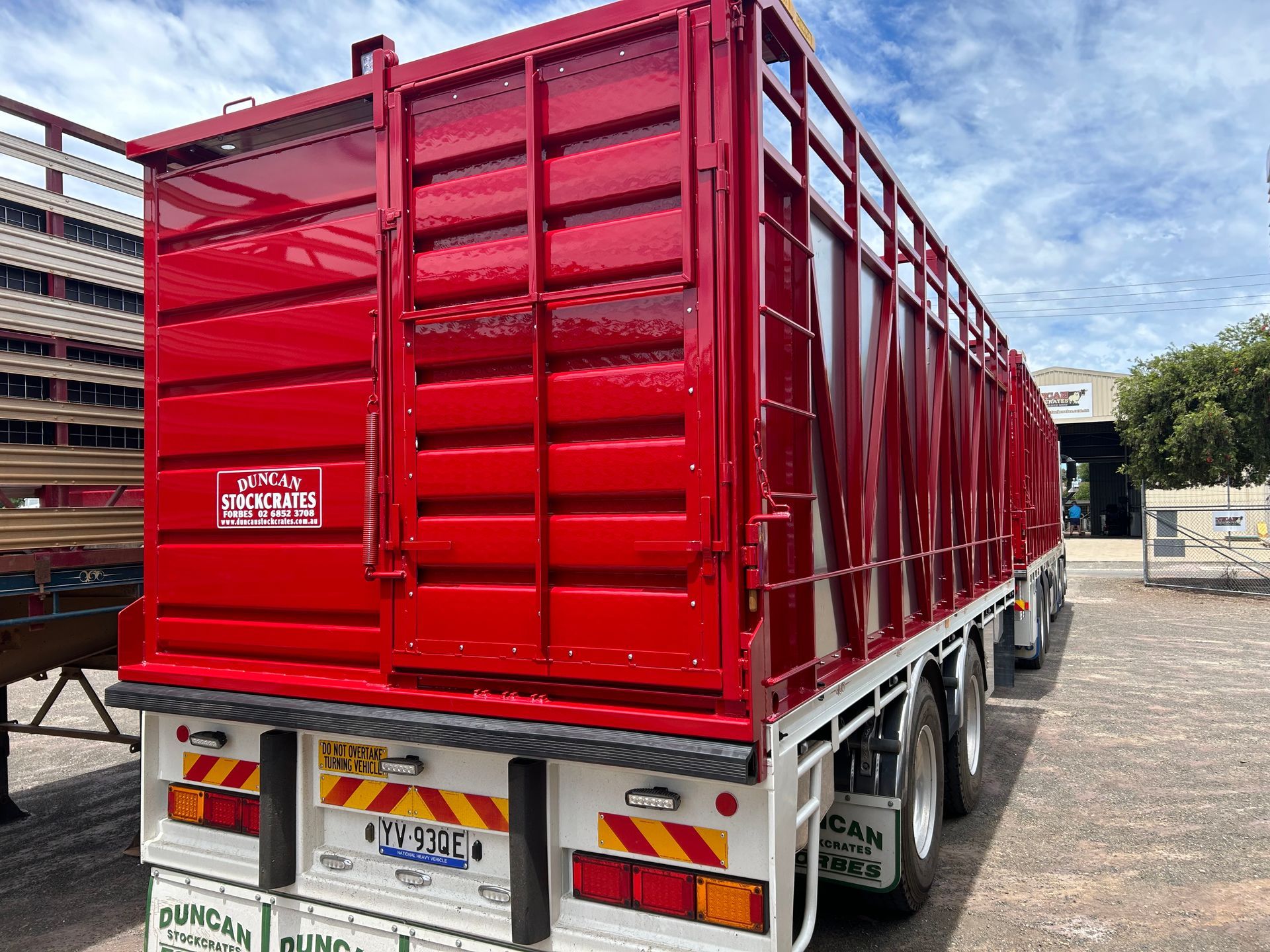

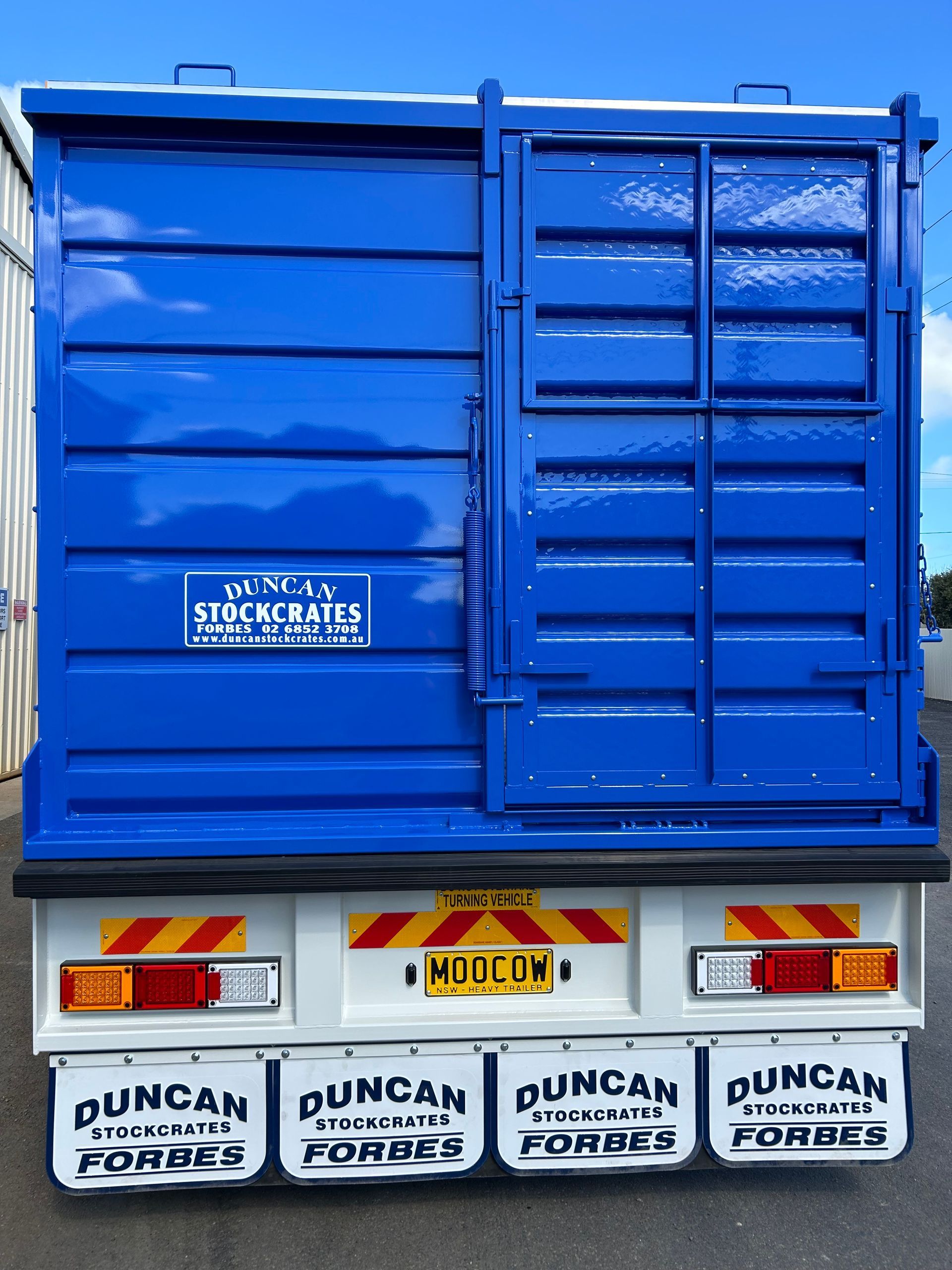

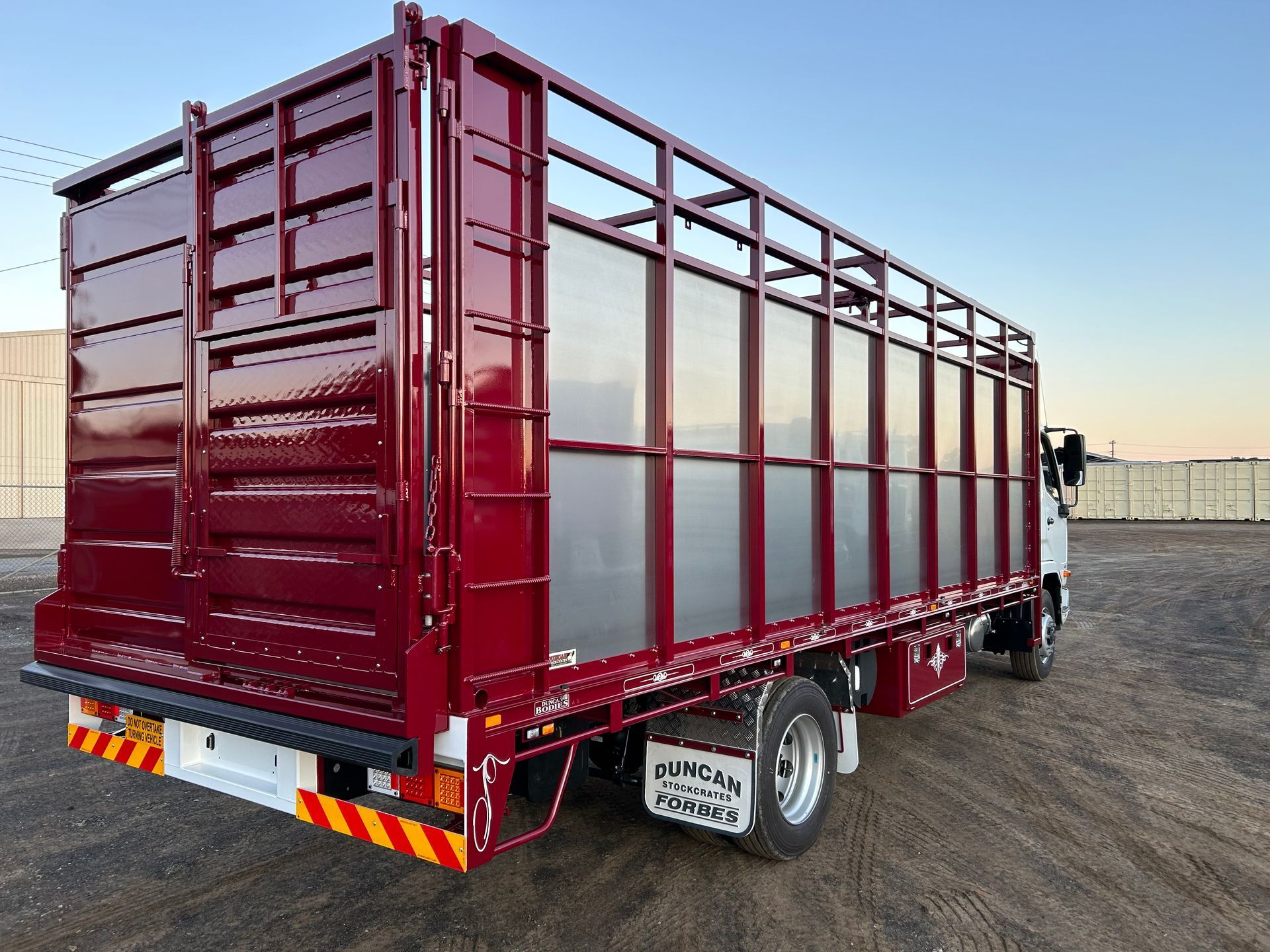

- Slide and drop or slide only front and rear door options, with ¾ width available if preferred
- Complete customization of features throughout including rolling centre dividers, foldaway cattle gates, side load options, retractable tarps & LED lighting.
All Duncan products are built utilizing Australian 1st class steel and aluminium, and all sheeted panels are manufactured with HW350 grade hot rolled sheet.
Our products are fully sandblasted on site and painted utilizing a 2K painting process.
All products receive 1 coat of 2K epoxy primer and 2 coats of 2K polyurethane topcoat, ensuring outstanding gloss retention, corrosion resistance and long term durability.
For further information please do not hesitate to contact our sales team on
(02) 6852 3708, or fill out an enquiry form and our sales team will offer our assistance.
